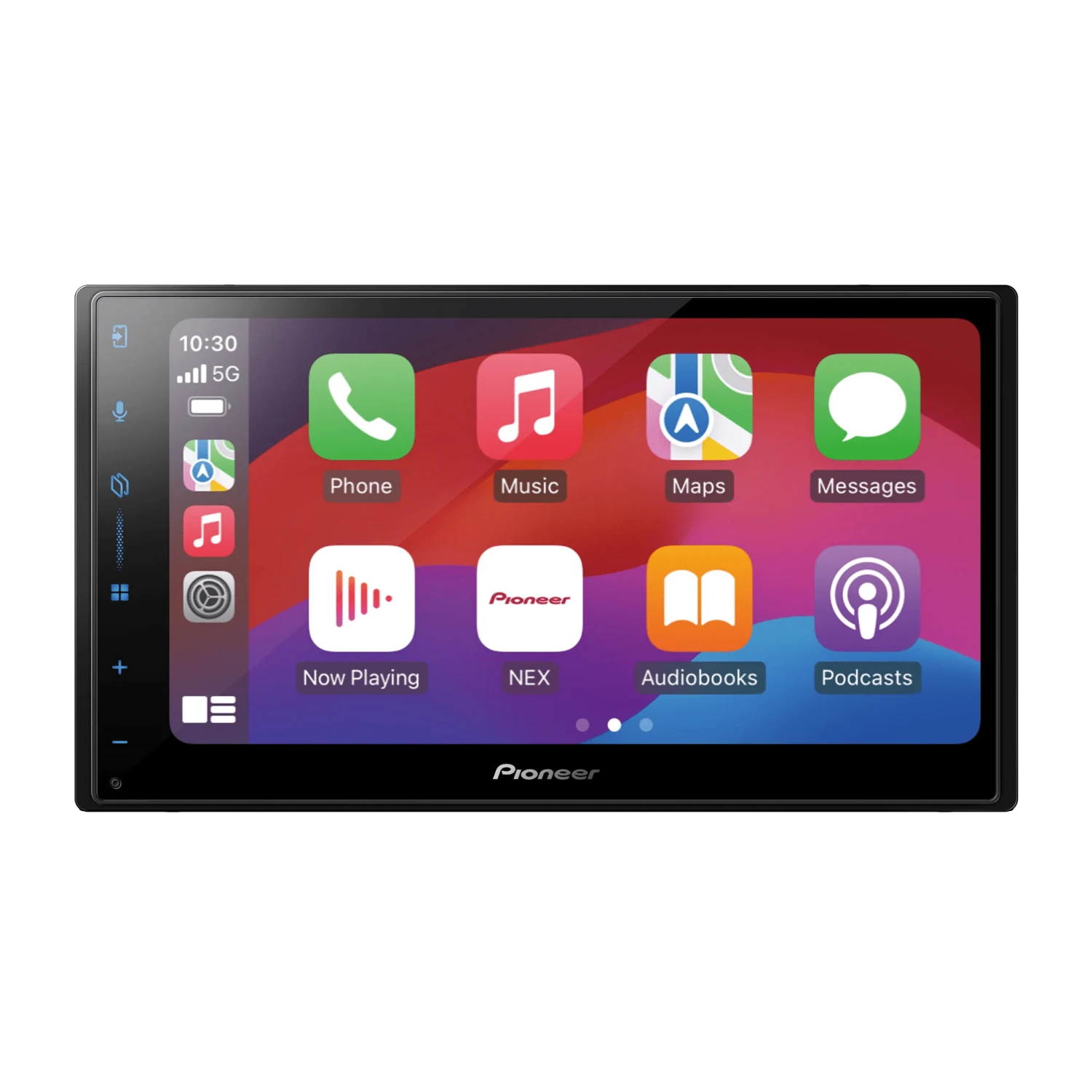

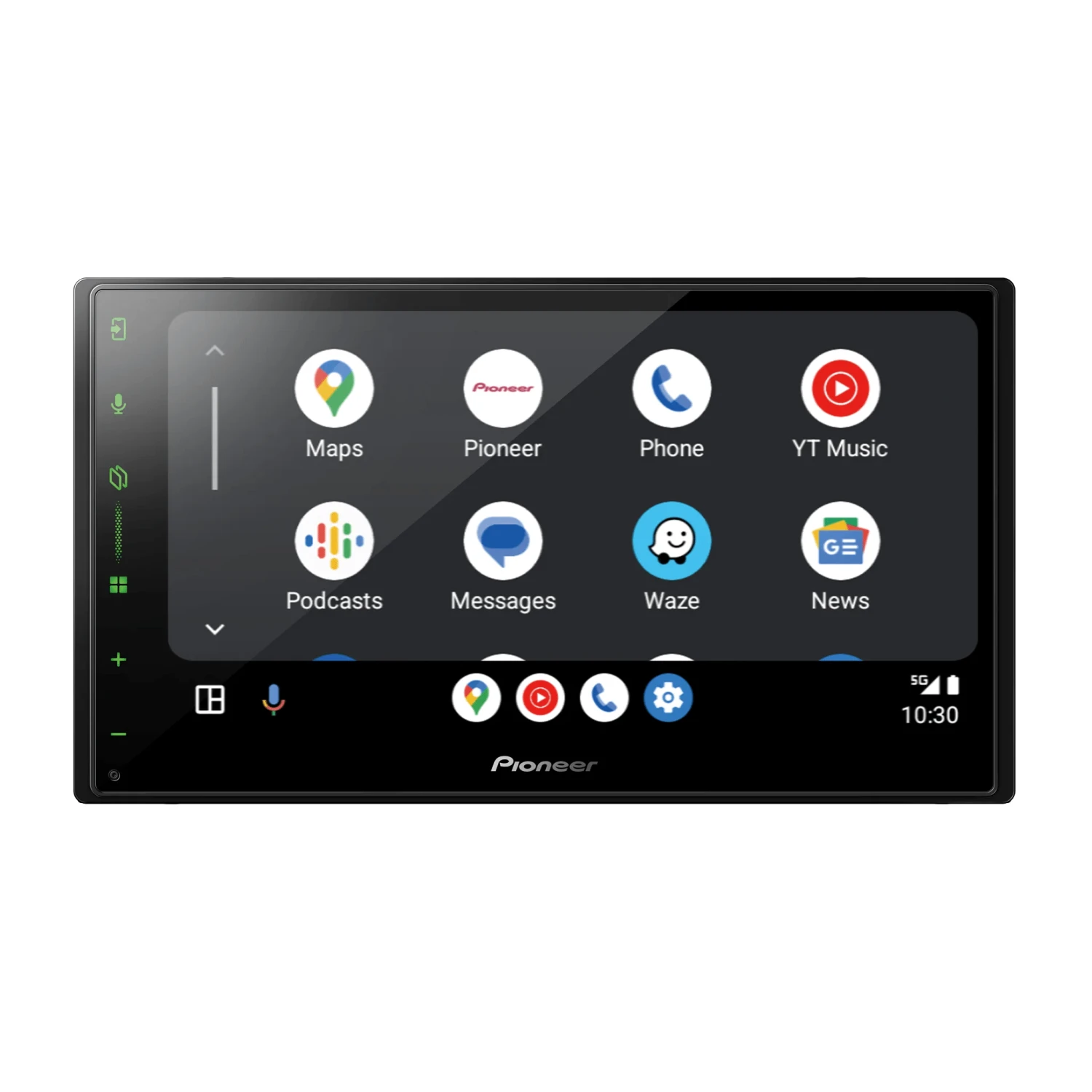

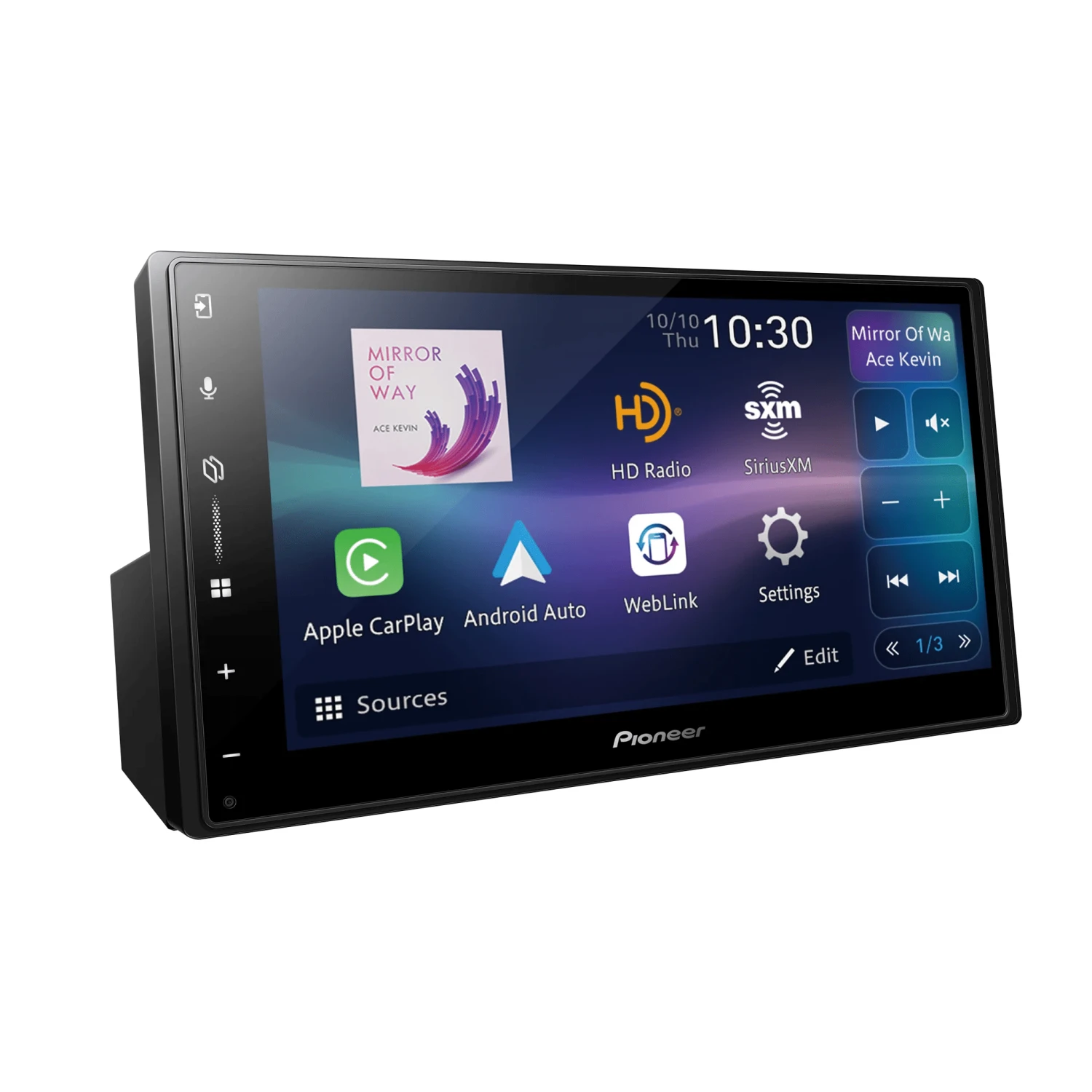

Pioneer DMH-W3050NEX Digital Media Receiver

The DMH-W3050NEX 6.8-inch display offers cutting-edge connectivity solutions tailored for today’s smartphone-centric lifestyle. Featuring a capacitive touchscreen display on an L-Shape 1-DIN Chassis, it ensures flexible installation for seamless integration into your vehicle’s dash. Key features include built-in Bluetooth, Android Auto, Apple CarPlay, and WebLink compatibility.

QuickSwipe Access
Minimize distractions with the new direct access buttons located on the left side of the unit. Perform quick interactions like making calls, initiate voice actions, go to app screens, and return to the main menu in 1-click instead of 2 to 3 times more interactions.

ShortCut Keys
Change the layout of your main menu and make it the way you like and put aside the things you don’t need. Pioneer’s new NEX receivers are offering a host of options for AV sources and other car AV features. But it is not because this offer is large that it must be heavy on visuals and complicated for the access.

Wireless connectivity
This Pioneer Receiver supports a cable free connection between your smartphone using Wi-Fi wireless connectivity and is compatible with Android Auto, Apple CarPlay and Wi-Fi certified Miracast. Its your choice, wireless or wired. Additional fees may apply.

Android Auto
A simpler, safer way to use your phone in the car. Get all your favorite maps, media, and messaging apps on your car display. To use Android Auto, you need a compatible Android smartphone with an active data plan.

Apple CarPlay
A smarter, safer way to use your iPhone while you drive. You can get directions, make calls, send, and receive messages, and enjoy your favorite music all on the built-in display.

iDataLink Maestro (RR & RR2)
iDatalink Maestro RR and RR2 (both sold separately), preserves factory features such as climate control, performance gauges and vehicle information such as tire pressure and diagnostics. Features vary by vehicle.

Back up camera input (1-camera)
Back up safely in any crowded parking area. Install a rear-view camera to use the receiver’s built-in parking guides for easy parking, with adjustable parking lines and full screen image for ease of use.

HD Radio
This Pioneer Receiver has a built-in HD Radio tuner, broadcasting in clear digital quality. Many stations offer extra local FM channels to enjoy more music, news, and sports – all 100% subscription FREE! Your FM and AM stations now have crystal-clear reception with no audio distortion.

Specifications

HEAD UNIT AUDIO
Advanced Sound Retriever: No
Audio Bass Boost: Yes
Auto EQ (CD-MC20 Microphone sold separately): No
Automatic Level Control: No
Auto Sound Levelizer (ASL): No
Balance: Yes
Bass & Treble: No
Built-in Amplifier: MOSFET 50 W x 4
Crossover Standard Mode: HPF/LPF
Customizable Graphic Equalizer: 13 Band
DA Converter: 24 Bit
Digital Signal Processor: Built In
Dynamic Bass Enhancer: No
Easy EQ (EEQ) Preset Equalizer: Yes
Fade: Yes
Listening Position Selector: Yes
Loudness: High/Mid/Low/Off
MIXTRAX®: No
Source Level Adjuster: No
Speaker Output: 4-ch
Spectrum Analyzer: No
Subwoofer Control: Yes

HEAD UNIT BLUETOOTH
Built-in Bluetooth®: Yes
Hands-Free: Yes
AVRCP: 1.6
Advanced Audio Distribution Profile (A2DP): Yes
Secure Simple Pairing (SSP): Yes
Serial Port Profile (SPP): Yes
Dual Phone Connection: Yes
Sound Retriever Air: Mode 1/Mode 2/Off
Guest Mode: No
Hands Free Version: 1.6
Microphone Included: Included

HEAD UNIT DIGITAL MEDIA PLAYBACK
Audio Playback via USB: WMA Audio Playback, MP3 Audio Playback, WAV Audio Playback (Hi-Res), AAC Audio Playback, FLAC Audio Playback (Hi-Res)
Audio Video Playback via USB: .3gp, .avi, .divx, .f4V, H.263, H.264, .m4v, .mkv, .mov, .mp4, .mpg/mpeg, .wmv/.asf
Image Display Via USB: BMP, JPEG, PNG

HEAD UNIT DISPLAY
Anti Glare/Reflection: No
Back Light: LED
Brightness Control: Yes
Device Display: No
Device (Non-DIN/Modular Unit): 2-DIN
Dimmer: Automatic with vehicle illumination, Manual
Display Off Mode: Yes
Home Screen Customization: Yes
Monitor Mechanism: Fixed
Resolution: WVGA (800 x 480)
Screen Size/Aspect Ratio: 6.8/16:9
Touch Screen: Capacitive

HEAD UNIT EXPANDABILITY
Audio Video Inputs: Input 1 – Backup Camera Dedicated, Audio/Video AUX (Minijack)
Dual Zone Rear-Seat Entertainment: No
OEM Integration: iDatalink Maestro RR, iDatalink Maestro RR2
OTA Update Compatabile: Yes
Parking Assist Lines: Yes
RCA-Video-Output: No
SD/SDHC Memory Card Slot: No
USB: Single Rear Type-A (5V, 1-1/2 A)
USB Direct Control for iPhone®: 5s and newer

HEAD UNIT GENERAL
Detachable Face Security: Fixed
Flap Face: No
Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
Music Browser: USB
Remote Control: No
Rotary Volume Control: No
Smartphone Cradle: No
Steering Wheel Control Ready (Adapter Sold Separately): Yes

HEAD UNIT INTEGRATION

Amazon Alexa: Paired with Pioneer Vozsis
Android Auto™: Wireless Connection or Wired USB Connection
Apple® CarPlay: Wireless Connection or Wired USB Connection
AppRadio Mode+: No
CarAVassist: No
Gracenote Sports: No
Mirroring: USB-Android Phone Only
Mobile Operating System: Android – Wired/WirelessApple iOS – Wired/Wireless
Music Playback (MTP): No
Pandora®: With Apple CarPlay or Android Auto
Pioneer App Compatibility: Vozsis Android, Vozsis iPhone
Siri® Eyes Free (VR) (Internet Required): iPhone Only
Spotify: With Apple CarPlay or Android Auto
Voice Control: Yes
Weblink: Version 2.0

HEAD UNIT TUNER
Best Station Memory: Yes
HD Radio™: Built In
Hybrid Radio: No
Local Seek tuning: Yes
Presets: 18 FM 12 AM
PS (Preset Scan): No
RDS: Yes
SiriusXM-Ready™ (Tuner Sold Separately): Yes
Supertuner® IIID: No

PRODUCT PERFORMANCE
Continuous Power Output: 22 W x 4-Channel
Load Impedence Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
RCA Preamp Outputs: 6-ch
RCA Preout Voltage: 4V
RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
Signal to Noise: No
