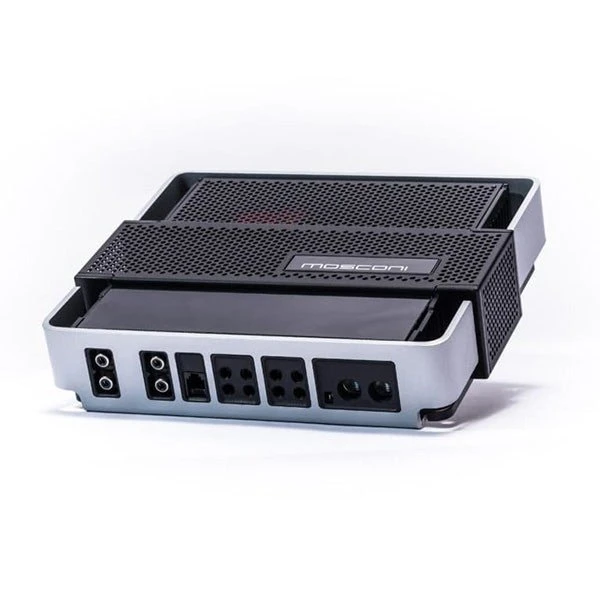

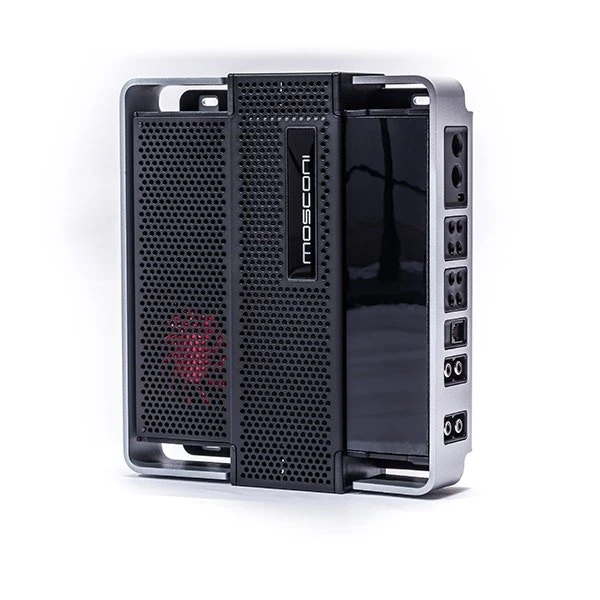

Mosconi Pro 410 4-Channel Amplifier

Features
Sn Ratio: > 74 dBA / >95 dBA (DDSP) (ref: 1 Watt into 4 Ohm)
4 Ohm ST or 8 Ohm BTL – CONTINUOUS SINEWAVE SIGNAL – pure resistive load or speaker load
2 Ohm ST or 4 Ohm BTL – MUSICAL SIGNAL – pure resistive load or speaker load
2 Ohm – MUSICAL SIGNAL – – pure resistive load or speaker load (only CH5)

Specifications

Target powers:
120×4 Watt (Stereo) @ 4 Ohm
160×4 Watt (Stereo) @ 2 Ohm
320×2 Watt (BTL) @ 4 Ohm
Input sensitivity: (Power rating ref)
0.35V ÷ 12V (5.3V in DDSP mode) [CH1/2/3/4]

Xover functions:
CH1/2= HP: 43 ÷ 500Hz(x1) or 430 ÷ 5000Hz(x10) [12 dB/oct – Q: 0.7] CH3/4= HP: 50 ÷ 200Hz & LP:(430 ÷ 5000Hz) [12 dB/oct – Q: 0.7]

Special features:
Direct DSP (bypass all the preamplifier circuitry but the differential input interface)
High Level / Low Level selectable input
RTC input
Internally controlled via Atmel Processor
Size: 9 1/4″ x 8 1/16″ x 2 3/19″
Weight: 5.3 lbs.
