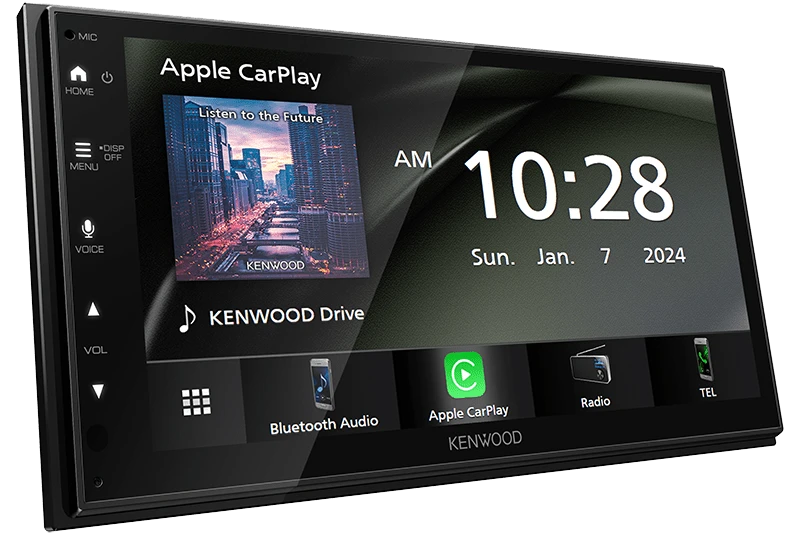

Kenwood DMX5710S 6.8″ Media Receiver with Wireless Apple CarPlay and Android Auto

Smartphone Connectivity

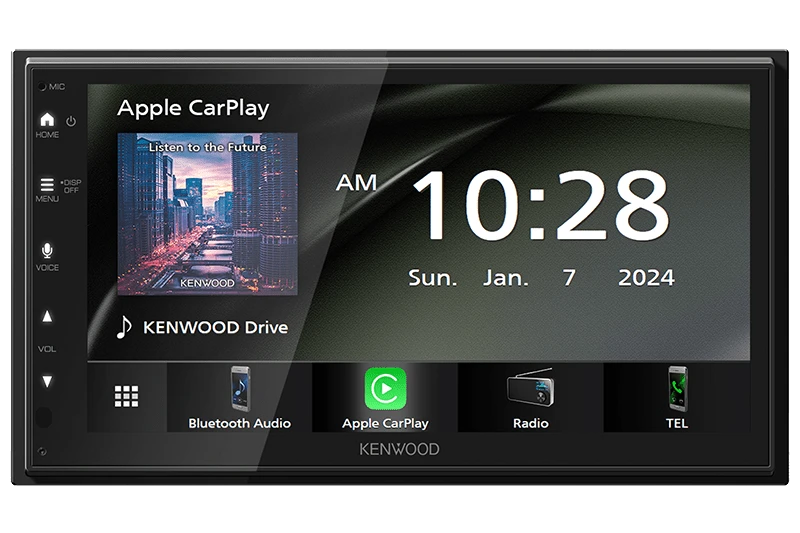

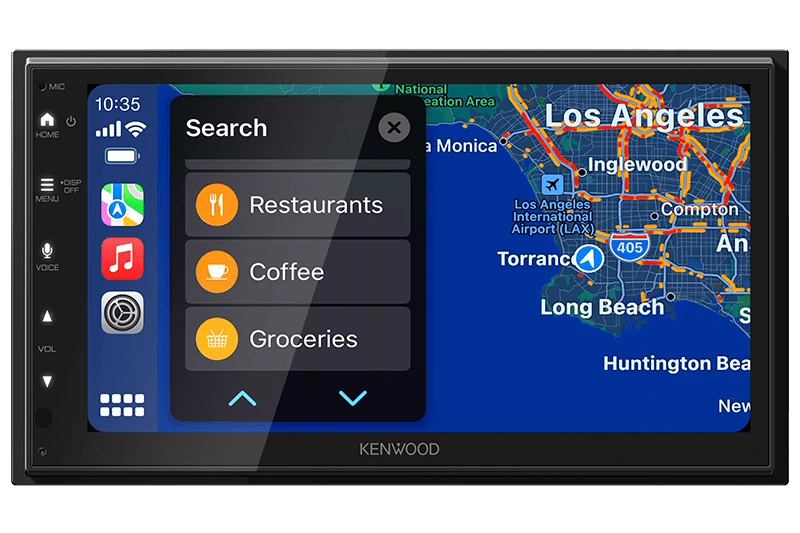

Apple CarPlay® – Connect Wirelessly or via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

*Some features, applications, and services are not available in all areas. For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay

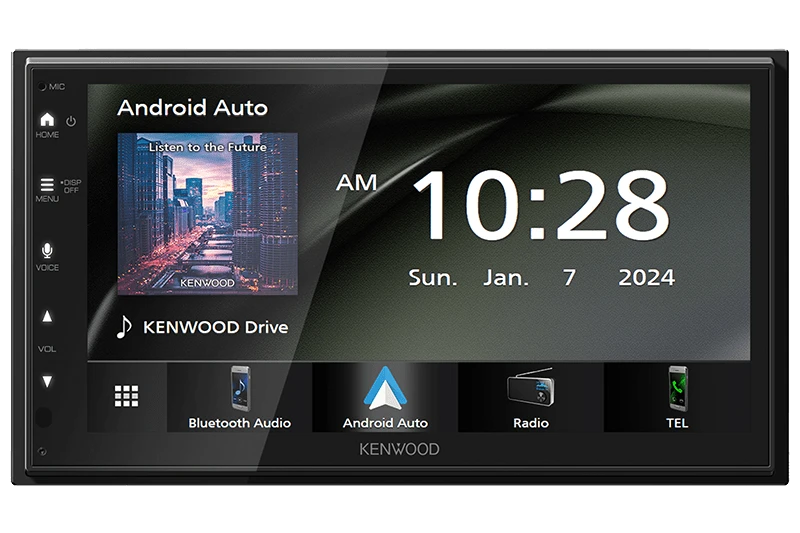

Android Auto ™ – Connect Wirelessly or via USB
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it’s designed to minimize distraction so you can stay focused on the road.

*Compatible Android phone and compatible active data plan required.
: *Some features and devices may not be available in all countries. Subject to availability.

Wireless Mirroring for Smartphone
By installing the “MirrorApp+” app, your smartphones seamlessly displayed on the receiver’s screen without cable. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and Smartphone.

*Selected smartphones only

Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.

The Best Audio Experience

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

Playable Video and Audio Files
You can play back from USB devices audio and video files compressed in various formats.

Safe Driving

Enhanced Vehical Intergration
Enhance your vehicle integration with the iDatalink Maestro RR/RR2 (sold separately). This system allows you to retain your factory steering wheel audio controls, factory amplifier, and secondary displays. Additionally, it can display crucial vehicle information, such as performance data, climate controls, and battery voltage, when connected to compatible vehicles. For added convenience, radar detector information can be shown on the screen when paired with a compatible K40 radar detector system (sold separately). With the iDatalink Maestro RR2, you can also integrate an Escort radar detector system (sold separately) for a seamless driving experience.

Rear View Camera Input with Parking Guidelines An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

Additional Features

WSVGA LCD Display
The WSVGA display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.

Convenient and Easy-to-Use Capacitive Touch Panel
Provides a high contrast ratio, crystal clear display and vivid text. Easy to use widgets provide access to information screens with a swipe.

SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.(Optional SiriusXM tuner required, sold separately)

Short Chassis Design
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

High Current 2.1A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 2.1A.

*Compatibility depends on the smartphone.

Remote Control (Optional)
This receiver unit can be operated using the optional remote control KCA-RCDV340.

Specifications

Monitor Section
Picture size: 6.8 inches (diagonal) wide
Display system: TN LCD panel
Drive system: TFT active matrix system
Number of pixels: 1,843,200
1024H x 600V x RGB
Effective pixels: 99.99%
Pixel arrangement: RGB striped arrangement
Back lighting: LED

USB I/F Section
USB Standard: USB2.0 High Speed
Connector: Type-A
File System: USB SW update: FAT32
USB Playback: FAT32/ exFAT/ NTFS/ FAT16
Maximum Power Supply Current: DC5V(DC logo) 2.1A
D/A Converter: 24 Bit
Audio Decoder: MP3/ WMA/ OGG/ AAC/ WAV/ FLAC
Video Decoder: MPEG1/ MPEG2/ MPEG4/ H.264/ MKV/ WMV
Frequency response:
     192k Sampling: 20 – 20,000 Hz
     96k Sampling: 20 – 20,000 Hz
     48k Sampling: 20 – 20,000 Hz
     44.1k Sampling: 20 – 20,000 Hz
Total harmonic distortion 1kHz: 0.2%
Signal to Noise ratio: 75dB
Dynamic range: 93dB

Wi-Fi Section
Wireless LAN Standards: IEEE 802.11 a/ n/ ac
Frequency Range:
     2.4GHz: –
     5GHz: 5.745～5.825GHz
Channels: 2.4GHz: –
5GHz: 149ch
Transfer rates (MAX): 11a:54 Mbps / 11n:150 Mbps / 11ac:433 Mbps
Output Power:
     2.4GHz/SISO: –
Output Power:
     5GHz/SISO: – (Not Indicate, ES-K-KC-Z21YZA-I-0402)
Output Power 5GHz/MIMO: –

Bluetooth Section
Bluetooth Specification Version: Bluetooth V5.0
Frequency: 2.402 – 2.480 GHz
RF Output Power (E.I.R.P.): – (Not Indicate, ES-K-KC-Z21YZA-I-0402)
Maximum Communication range: Line of sight approx.10m (32.8ft)
Audio Codec: SBC / AAC
Multi Profile Support: Multi Profile
Profile:
     HFP(Hands Free Profile) 1.7
     SPP(Serial Port Profile) 1.2
     A2DP(Advanced Audio Distribution Profile) 1.3
     AVRCP(Audio/Video Remote Control Profile) 1.6
     PBAP(Phonebook Access Profile) 1.2

FM
Frequency range (Frequency step): 87.9 – 107.9 MHz (200kHz)
Usable sensitivity: 5dBuV
S/N:30dB: 5.1dBμV/75Ω
Frequency response(±3.0dB): 30Hz – 14kHz
S/N Ratio(dB): 50dB (MONO)
Selectivity:
Stereo separation: 35 dB (1 kHz)

AM
Frequency range (Frequency step): 530 – 1700 kHz (10kHz)
Usable sensitivity: 99μV (40 dBμ)

Video
Color system of external video input: NTSC/ PAL
External video input level (RCA): 1 Vp-p / 75 Ω
External video input level (RCA, AV-In): –
External audio max input level (RCA): –
External audio max input level (RCA, AV-In): –
Video Output level (RCA): 1 Vp-p / 75 Ω
Audio Output level (mini jacks): –
Analog RGB input: –

Audio
Maximum Power (Front & Rear): 50Wx4
Full Bandwidth Power (Front &Rear)
(at less than 1%THD): 22Wx4
Output frequency band: 20 – 20,000 Hz
Preout level (V): 2.5 V / 10 kΩ
Preout impedance (Ω): 100 Ω
Speaker Impedance (Ω): 4 – 8 Ω
Equalizer: 13 Band
Band:
     Frequency: 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k/ 10k/ 16k Hz
     Level: -09 – +09 (-9dB – +9dB)
     Q: –
HPF:
     Frequency: Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz
     Slope: -6/ -12/ -18/ -24 dB/Oct.
     Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
LPF:
     Frequency: 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz/ Through
     Slope: -6/ -12/ -18/ -24 dB/Oct.
     Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
Phase: Normal/ Reverse

General
Operating voltage: 12V DC car battery
Main Unit Installation size W x H x D: 7 x 3-15/16 x 3-3/8 x inch
Weight: Main unit: 1.05 kg 2.3 lbs. (Including Trim plate)
