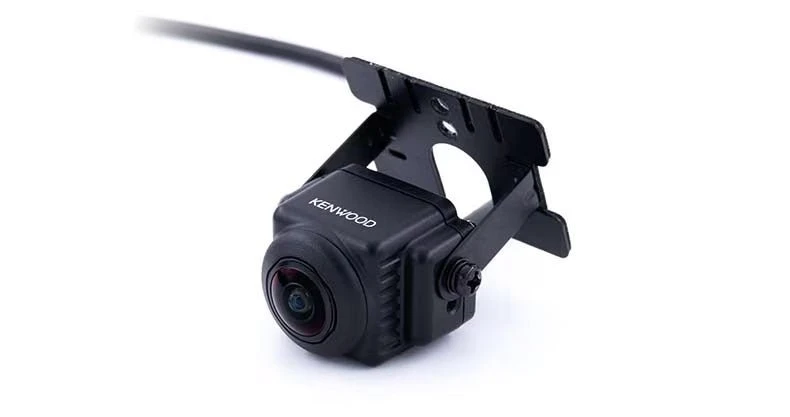

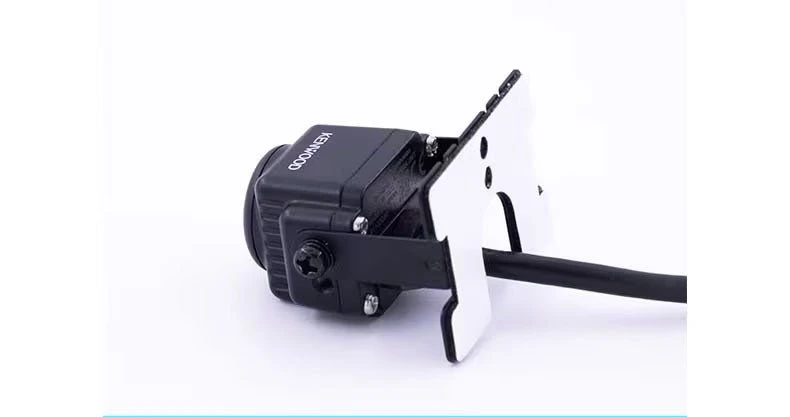

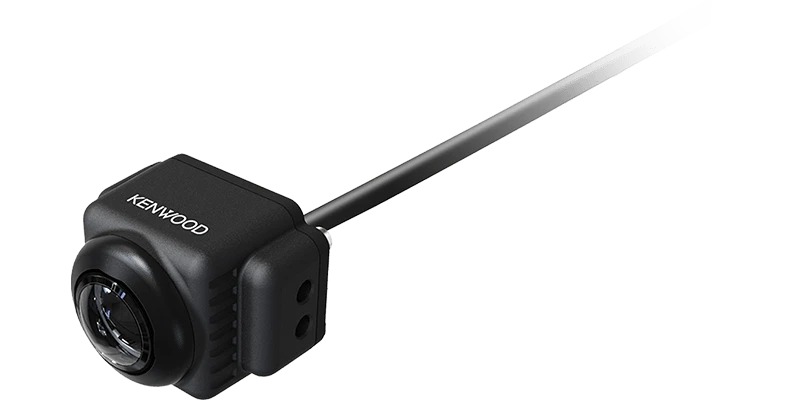

Kenwood CMOS-740HD HD Backup Camera

High Definition View
Displaying the image in true 1280 x 720 (720P) High Definition on compatible DNR1007XR, DNR1008RVS, DMX1057XR, DMX1037S, DNX997XR, DDX9907XR, and DMX958XR receivers.

WVGA Camera

HD Camera

HDR (High Dynamic Range)
HDR helps to reduce “blown out highlights” and “crushed blacks” and ensure clear images in challenging environments, including backlit scenes in daylight, streetlight scenes at night and places where light-dark contrast is particularly severe.

W/O HDR

With HDR

12V & 24V Compatible
Cameras work with both 12V and 24V applications.

General Features
Photographed Image: HD (1280 x 720)
Lens: Wide angle, focal length: 1.86mm F:2.0
Frame Rate: 30fps
Angles of View: Horizontal 180°/ Vertical 103°
Operating Voltage: 12V/24V
Operating Temperature: -22℉ to +185℉ / -30℃ to +85℃
IPX: IP67
Output: HD-TVI
Weight: 0.073lbs / 33.2g (without cable)
Dimensions (W x H x D): 1-1/4″ x 15/16″ x 1″ / 31.1mm x23.0mm x25.2mm

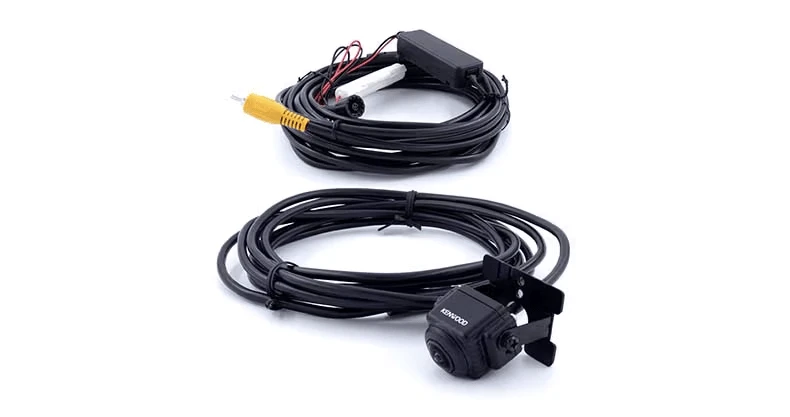

Cable Length
Camera Unit side: 9.84ft / 3m
DC Box Unit side: 19.69ft / 6m
Other: 1.64ft / 0.5m
