KC HiLiTES 0651 Gravity G6 Daylighter 6″ CREE LED Spot Lights

The KC HiLiTES 6″ Gravity® LED Daylighter is designed to deliver powerful performance and durability, combining advanced CREE LED technology with rugged construction.

Key Features

Exceptional Brightness and Efficiency
Powered by KC’s G6 LED optical inserts, the Gravity® Daylighter produces an impressive 2,150 lx @ 10m while consuming only 1.63A per light. Using the patented GRD (Gravity® Reflective Diode) system, the LEDs are aimed into precision reflectors to maximize light output and project it forward with incredible clarity.

Focused Beam Pattern for Optimal Performance
Provides concentrated, bright light for maximum forward distance and high-speed visibility, ideal for off-road or racing conditions.

Flexible and Accurate Mounting
The adjustable shock mount system ensures easy aiming, allowing precise alignment of the beam for stable and consistent illumination.

Built for Strength and Durability
Designed to withstand harsh environments and tough terrains, the Gravity® Daylighter features a race-proven steel housing, an impact-resistant polycarbonate lens, and an IP67-rated Gravity® G6 LED optical insert.

Complete System
The kit includes black steel housings, polycarbonate lenses, a flexible base for easy aiming, and a complete wiring harness with switches for simple installation.

Experience race-tested performance, extreme durability, and unparalleled lighting efficiency with the KC HiLiTES 6″ Gravity® LED Daylighter.

Features
2 x 20W Gravity® LED G6 optical inserts
Black Powder Coated Steel Housing
Hard Coated Polycarbonate Lens
Spot Beam Pattern

Light Performance (Per Light)
Raw Lumens: 2,300 lm
Lux @ 10 m: 2,150 lx
Candela: 215,000 cd
Beam Distance (Meters): 972m

Specifications (Per Light)
Wattage: 20W
LED Source: CREE XPL HD LED
Amp Draw: 1.63A
Voltage: 9V-32V
IP Rating: IP67
Dimensions: W – 6.22″ x H – 8.42″ x D – 5.38″

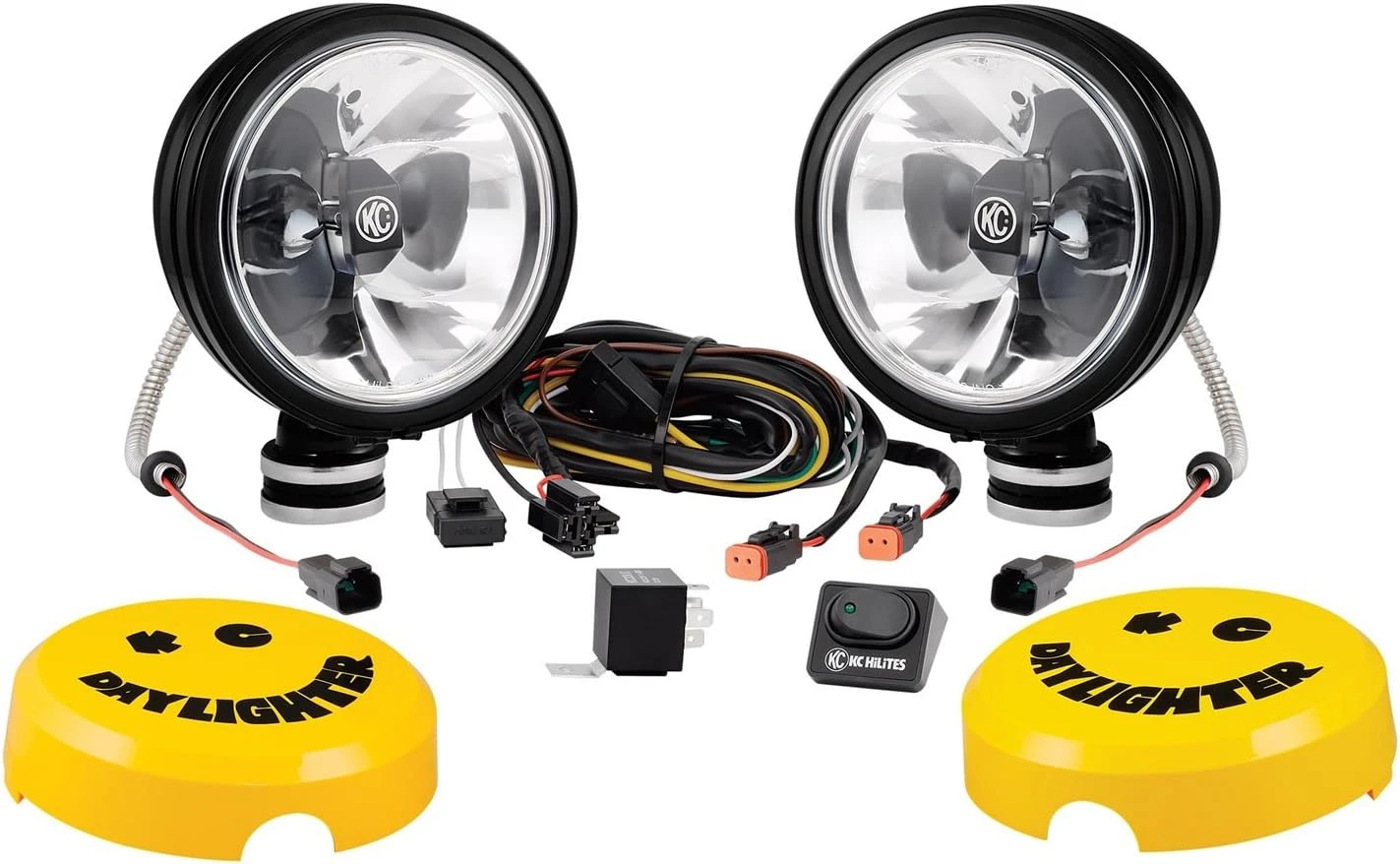

Parts Included
(2) 20W 6″ Gravity® LED Daylighter lights
Deluxe Wiring Harness w/2-Pin weatherproof connectors
(2) Protective KC Daylighter light Guards
30 Amp Illuminated Switch w/ Switch Panel
