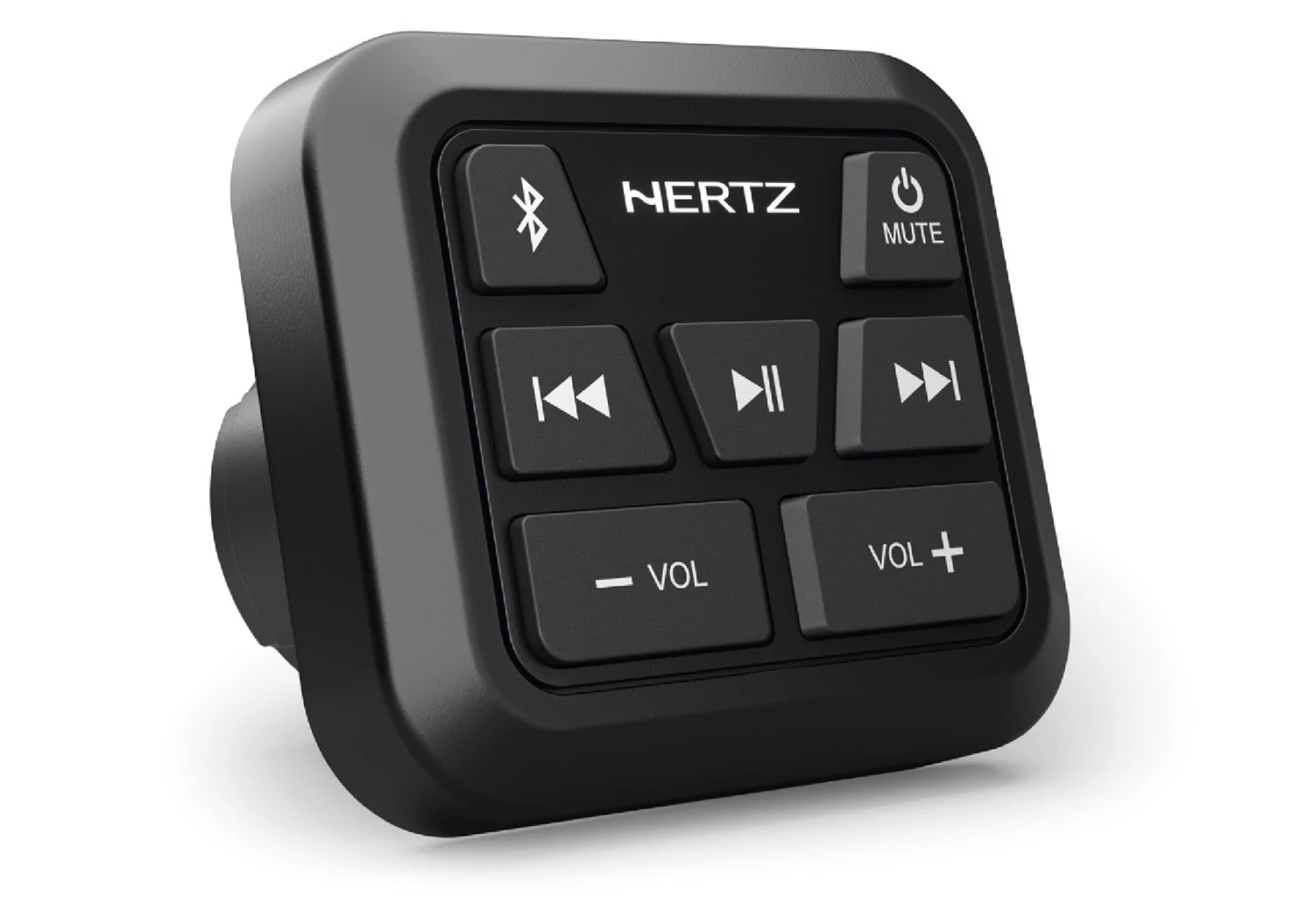

Hertz HMR BT Marine Bluetooth Receiver

Thanks to the IP67 water resistance rating, the HMR BT Bluetooth® audio controller/receiver is ideal for small boat and Powersports applications. When connected directly to an amplifier, it can be used as a stand-alone source unit/receiver or it can provide Bluetooth® connectivity to any source unit with line-level inputs. The white LED backlit push-button controls are always well visible at any hour of the day. Ready to have some serious fun with the HMR BT Bluetooth® Audio Controller/Receiver?

Features

Salt Fog Tested
To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.

IP Certification
IP65

Water Jet Tested
IP65 speakers define all the Hertz Pure Marine Certified products as totally protected against water jets of different entities, making them highly performant in the marine environment.

UV Resistant
According to the severe ASTM-D4329 standards for UV resistance, all the materials used for Hertz Marine products are designed to face long time exposition to UV radiations while cruising on the open sea.

Dust Intrusion Resistant

Specifications
FRONT PANEL IP RATING: IP67
LINE OUTS: 1x Stereo RCAs (left and right)
FREQUENCY RESPONSE: 20 Hz – 18 kHz (±1dB)
S/N Ratio @ 4Vrms (THD <1%): 93 dB (20 Hz – 20 kHz)
PREOUT VOLTAGE & IMPEDANCE: 4V RMS / <100Ohm
REMOTE OUT: 8V – 24V
OPERATING VOLTAGE: 8V – 28V
Fuse: 2A
OPERATING TEMPERATURE RANGE: -10°C – 50°C

Size & Mounting
Mounting Hole diameter mm (in.): Ø 45 (1.77)
Mounting Method: Panel mount (4 screws); U-Bracket

Physical Specifications

A: 73,2 – 2.9 (mm – in.)
A1: 64,1 – 2.5 (mm – in.)
B: 63,7 – 2.5 (mm – in.)
B1: 27,7 – 1.09 (mm – in.)
C: 39,1 – 1.54 (mm – in.)
D: 16,7 – 0.66 (mm – in.)
E: 55,8 – 2.2 (mm – in.)
