Focal  ES 165 KX2E K2 Series 6.5″ Component Speakers

Focal  ES 165 KX2E K2 Series 6.5″ Component Speakers

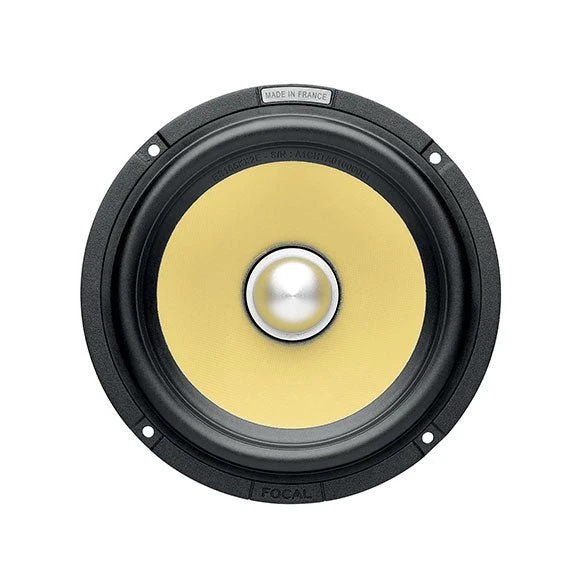

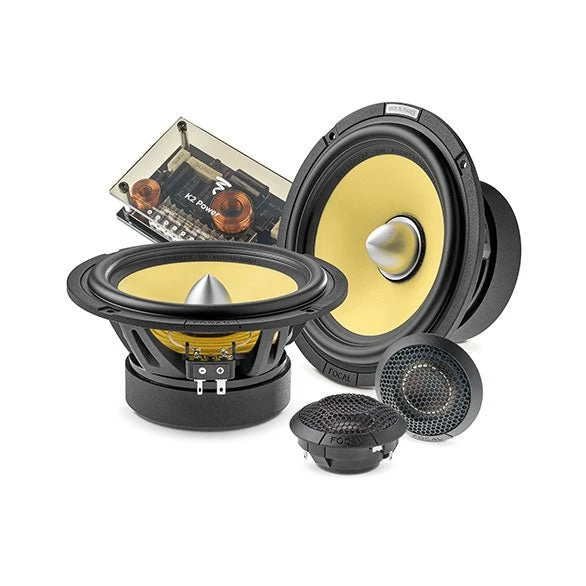

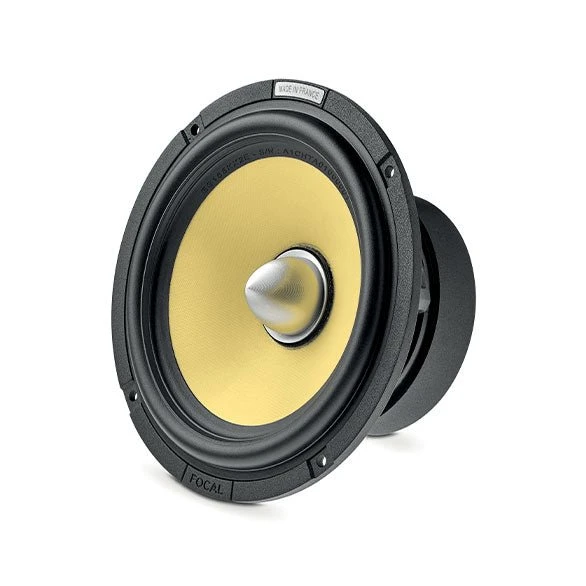

The ES 165 KX2E audio kit consists of two 6 1/2” (165mm) woofers with a K2 cone. Made of aramid fibre, this exclusive Focal cone promises to deliver rich and striking sound. Combined with the central ogive that guarantees better sound dispersion within the passenger compartment, in-car listening becomes truly thrilling.

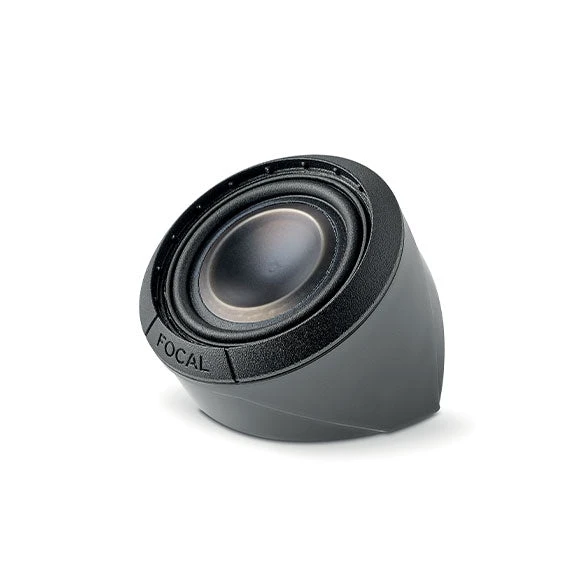

Equipped with an aluminium/magnesium cone, the ‘M’-shaped inverted dome FRAK tweeters offer an ultra-realistic sound. Coupled with bi-amplified audiophile crossovers, they enable perfect control of the high frequencies, reproducing super smooth, defined treble. The listening experience is marked by unparalleled harmonic balance. Thanks to their angled brackets, the tweeters will fit seamlessly into the passenger compartment.

K2 Sandwich Cone
The aramid fibre cone inherits all of Focal’s unique know-how. Composed of an ultralight foam core, sandwiched between a thin layer of aramid fibre and a layer of fibreglass, it combines 3 key factors when it comes to acoustics: rigidity, lightness and damping, for sound that is as precise and dynamic as it can get.

TMD® Surround
The speaker drivers benefit from TMD (Tuned Mass Damper) technology, a patented innovation. This surround has a special profile, designed to better control the effect of resonance and reduce the distortion associated with deformations of the cone. The midranges are perfectly defined and very realistic.

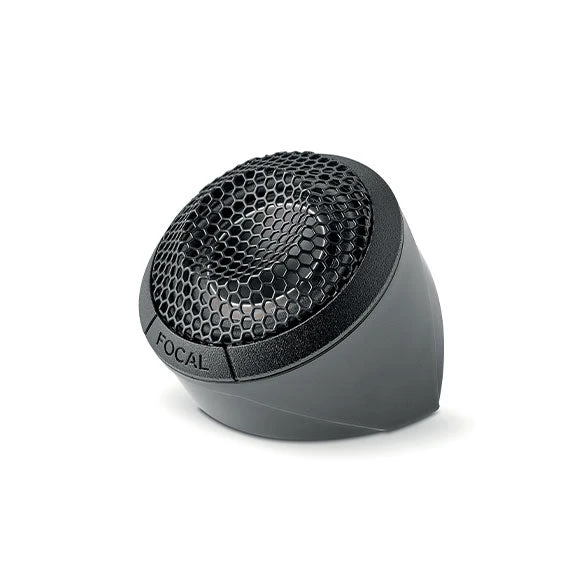

FRAK Tweeter
The ES 165 KX2E and ES 165 KX3E kits are equipped with Focal’s ‘M’-shaped FRAK tweeter. A revolution in Car Audio, it combines aluminium and magnesium for good frequency lowering and superb damping. Its lightness helps it shine in the high treble.

More Linearity and Precision
The progressive spider on the K2 Power speaker drivers is built around a progressive section to reproduce all the impact of the bass and increase the linearity, precision and dynamics of the sound.

Increased SPL

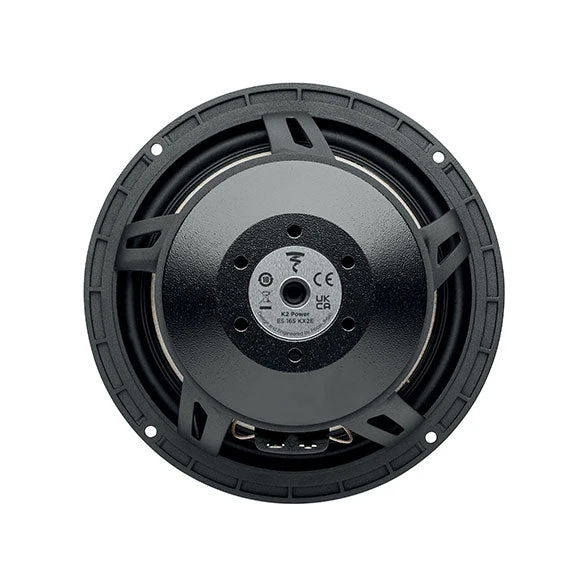

The Radial VC cooling system for the speaker driver coil expels hot air from the coil towards the bottom of the motor through 6 holes. This improves control over the coil temperature, limiting the effects of heat compression and improving reliability. This improves the dynamics of the speaker driver and generates a powerful sound.

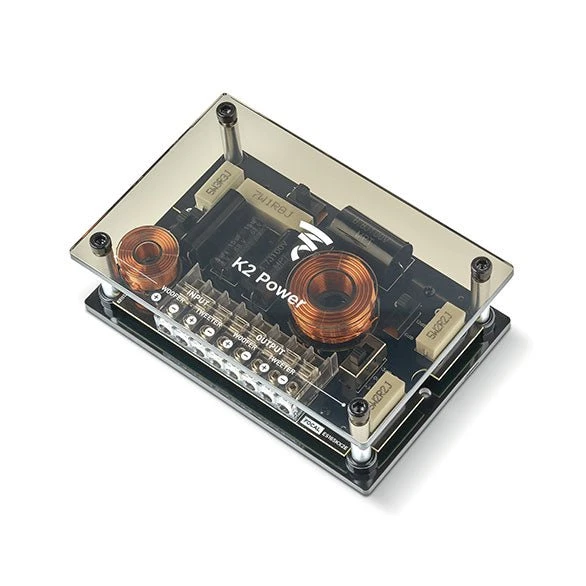

Optimised Crossovers
All the components used for the K2 Power crossovers have been specially selected and optimised to better control the effects of heat dissipation. These components are essential for managing the various channels and the soundstage reliably and efficiently.

Slim Profile
The ES 165 K2S and SUB 25 KXS kits have a shallow depth. This slim profile takes up minimal space whilst maintaining exceptional power handling.

Specifications – Woofer 6.5″
Nominal power: 120W
Maximum power: 240W
Sensitivity (2.83V/1m): 93dB
Cone: K2 Sandwich
Nom. impedance: 4Ω
Surround: Butyl
DC resistance: 3.2Ω
VC diameter: 40mm 15/8″
Former: Kapton
Layers: 2
Wire: CCWA
Magnet (dxh): 100x22mm 4×7/8″
Net weight: 1,750g 3.85lbs

Parameters
Rdc: 3.2Ω
Fs: 54Hz
Mms: 16.5g
Cms: 0.53mm/N
Vas: 13l
Qts: 0.48
Qes: 0.53
Qms: 5
Bxl: 5.8 N/A
Sd: 128.6cm2
SPL: 89dB
Xmax: 5.3mm

Specifications – FRAK Tweeter
Nominal power: 25W
Maximum power: 150W
Sensitivity: 91dB
Nom. impedance: 4Ω
Frequency response: 600Hz-32KHz
Cone: Aluminium/Magnesium M-profile
Surround: TMD®
VC diameter: 25mm 1″
Net weight: 85g

Parameters
Impedance: 3.2Ω
Fs 180Hz
