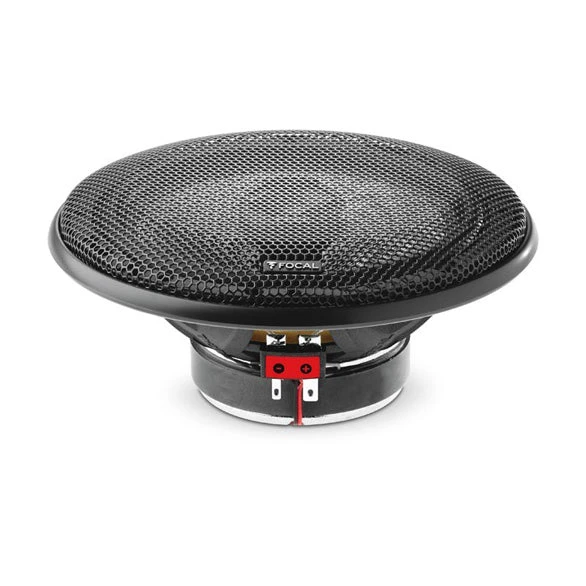

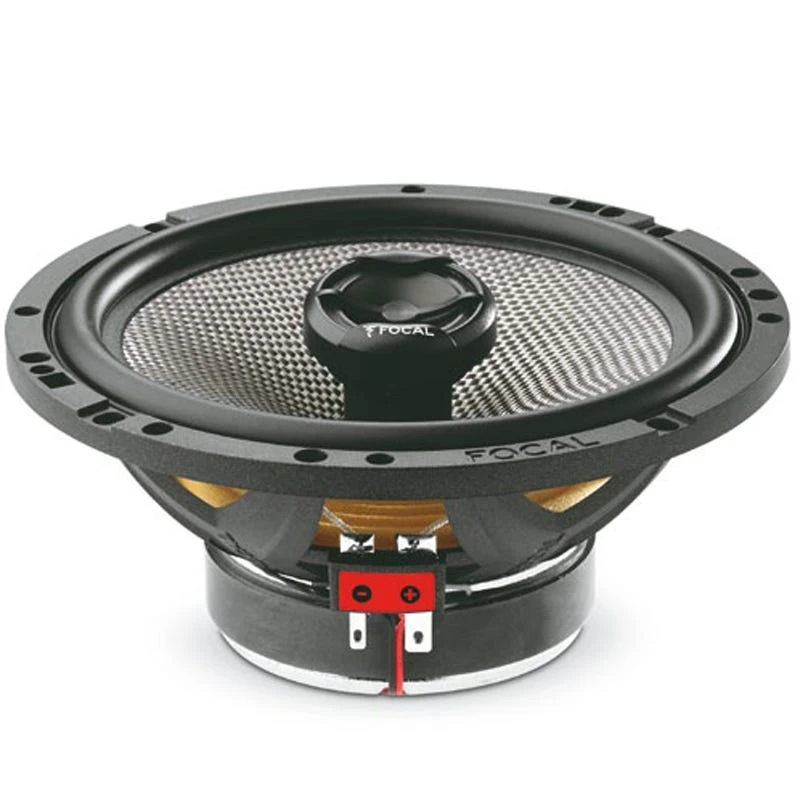

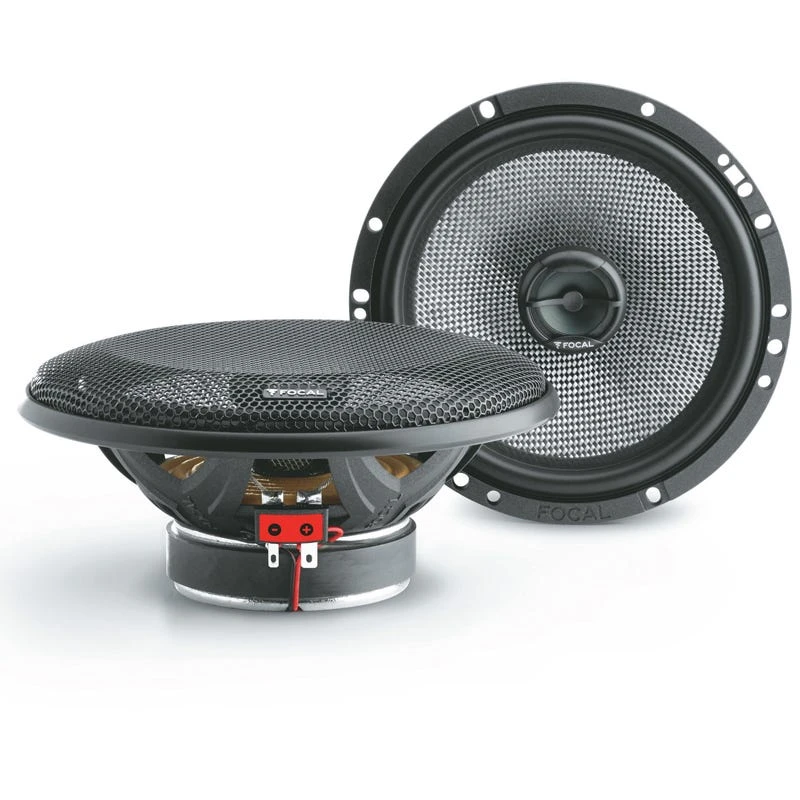

Focal 165 AC Access Series 6.5″ Coaxial Speakers

The Access 165 AC coaxial kit puts Focal sound in your car with no fuss. Measuring 6½” (165mm) in diameter and with 60 W rated power, this kit is easily fitted for an effective, responsive audio system. This car audio kit marks access to the performance world: remarkable power handling, deep bass and extremely dynamic sound. All this is possible thanks to numerous Focal technical innovations and a new choice of specific materials.

POWER ABOVE ALL

Watts and robustness
With these speakers and their high rated power, you can enjoy quality sound in your vehicle. The Kapton-mounted dual-layer 30mm coil guarantees high power handling and distortion-free sound reproduction. Power handling, great bass and acoustic performance remain the common denominators of the Access philosophy, which has marked its users from all over the world for more than the last ten years…

POWER HANDLING

DFS cone
DFS® technology features robust and reliable cones. Composed with two 90° woven glass fibres and insulated with polyurethane, it resists to extreme acoustic environments and harsh weather conditions. The cone have great power handling, and deep bass.

Focal Speaker

MODERN APPEARANCE

From a visual standpoint, this new product line is resolutely more modern: doped ABS basket structure, integral terminal block, new tweeter design, contoured grilles, etc.

Specifications
Nominal power: 60W
Maximum power: 120W
Sensitivity: (2,83V/1m) 91dB
Cone: Glass fiber
Surround: Butyl
Nom. impedance: 4 Ohms
DC resistance: 3.5 Ohms
VC diameter: 25mm 1″
VC height: 10mm 03/8″
Former: Kapton
Layers: 2
Wire: Copper
Inductance: –
Xmax: ± 2.5mm 01/8″
Magnet d x h: 85mm x 15mm 31/3 x 09/16″
Magnet weight: 380g 0.76 lbs
Flux density: 1T
Gap height: 5mm 03/16″
Net weight: 0.85kg 1.70 lbs

Parameters
Fs: 73.17Hz
Vas: 8.93 liters
Qts: 0.867
Qes: 1.02
Qms: 5.77
Re: 3.63 Ohms
Sd: 136.85cm2
Cas: 6,36E-08 m5/N
Mas: 74,44 Kg/m4
Ras: 5930,95 Ohms.ac
Cms: 339µm/N
Mms: 13.94g
Rms: 1.111kg/s
Ces: 611.2mF
Les: 7.74mH
Res: 20.54 Ohms
BI: 4.78N/A
SPL: 87.19 dB/W/m
