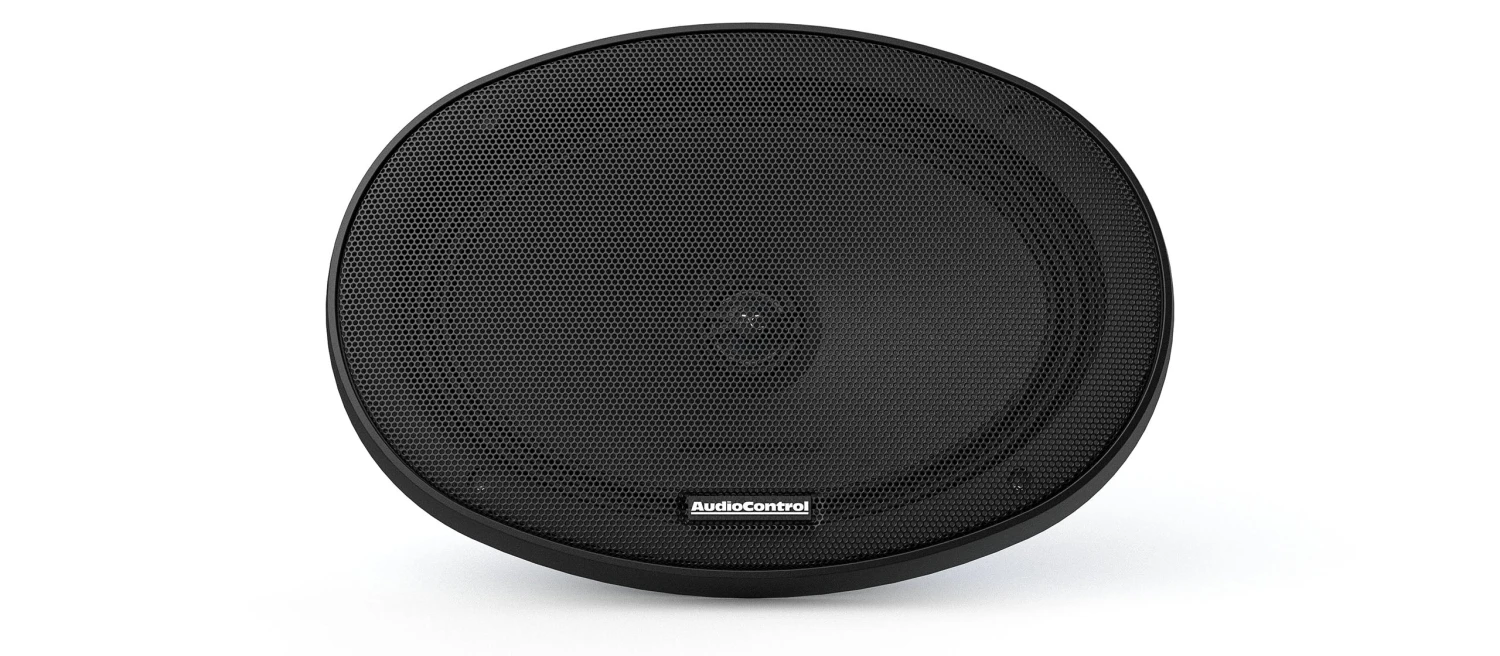

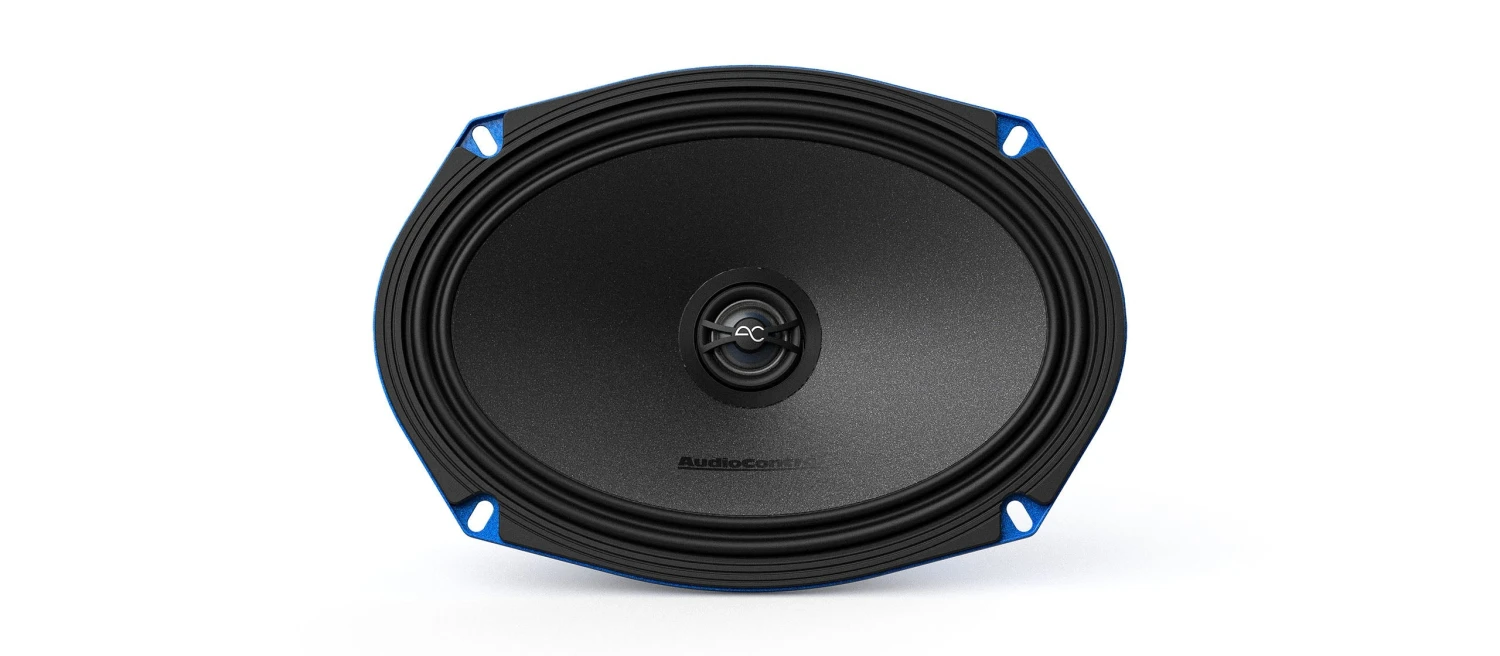

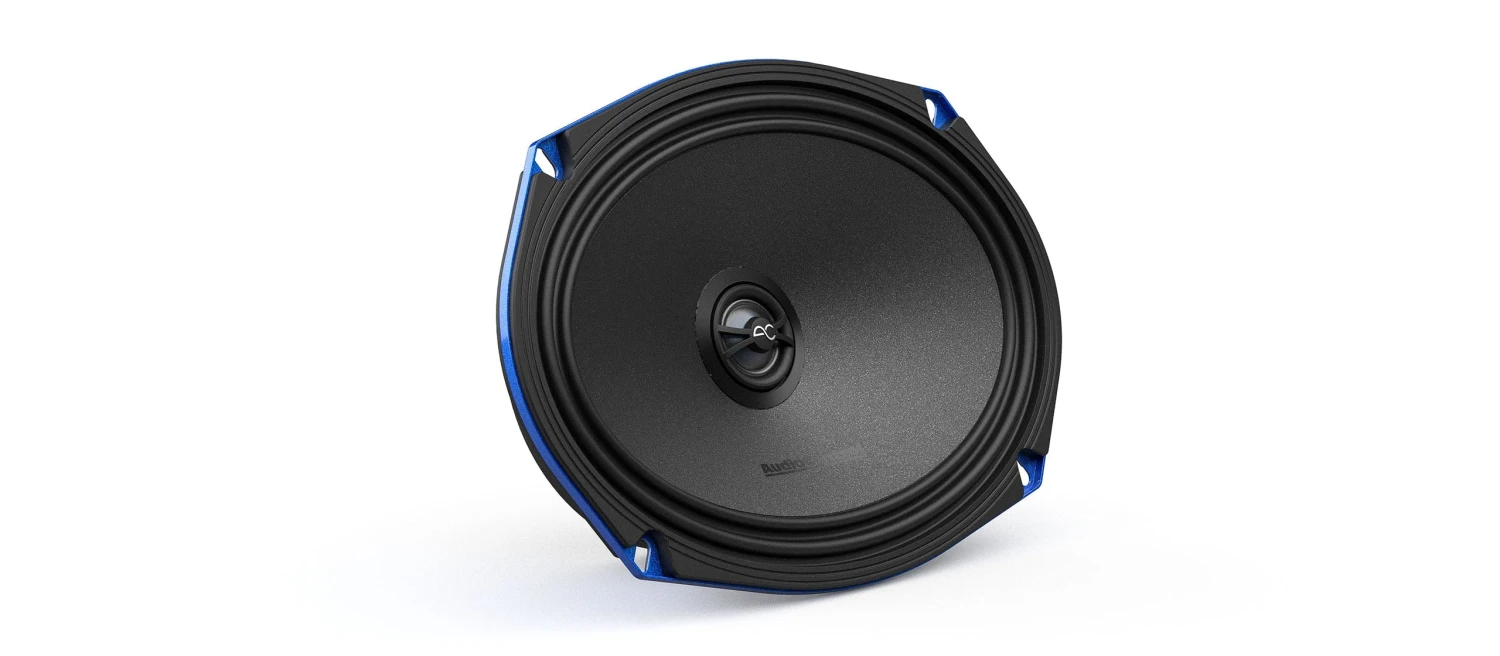

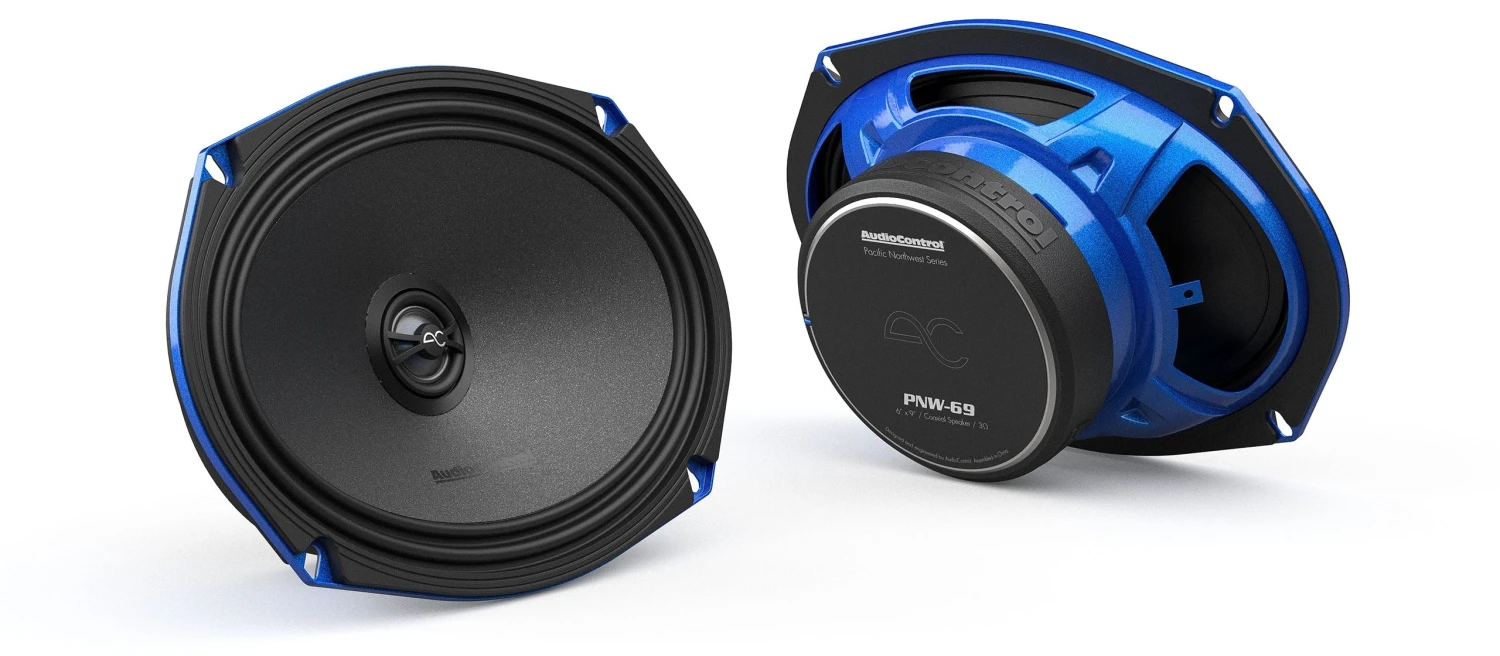

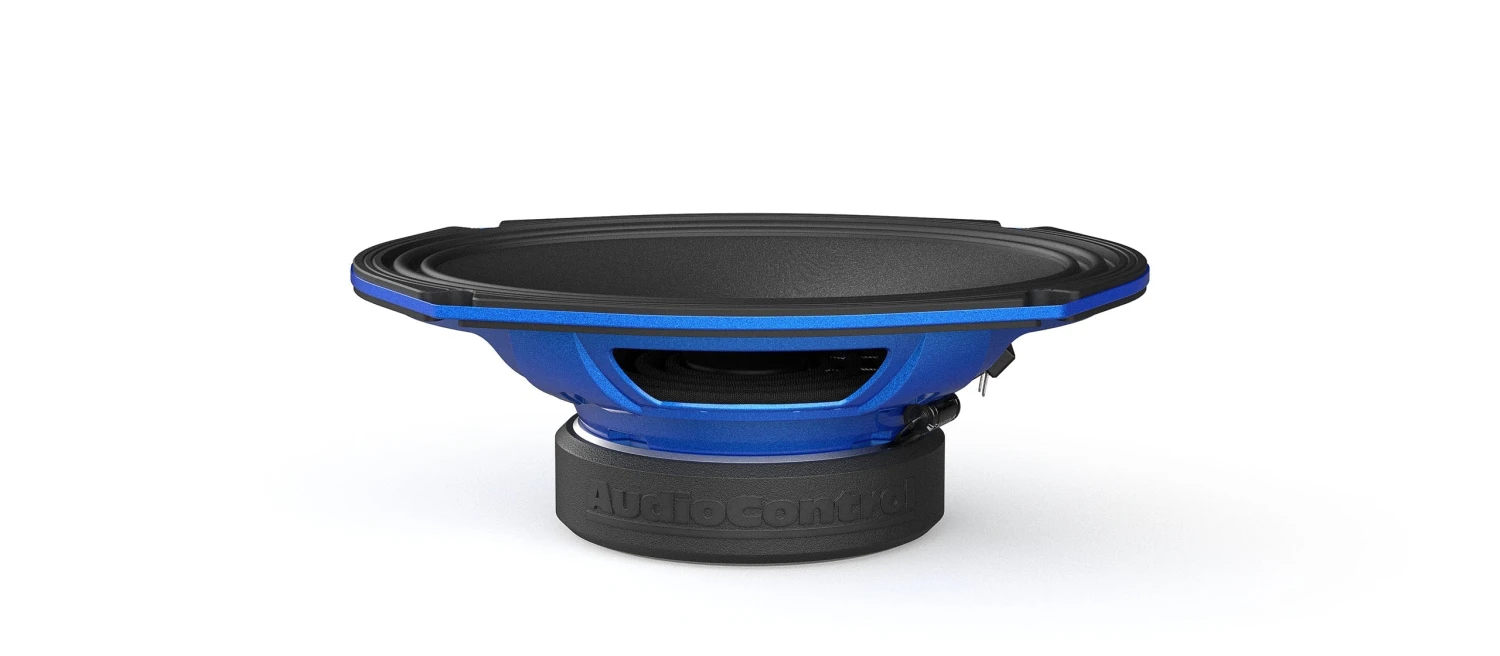

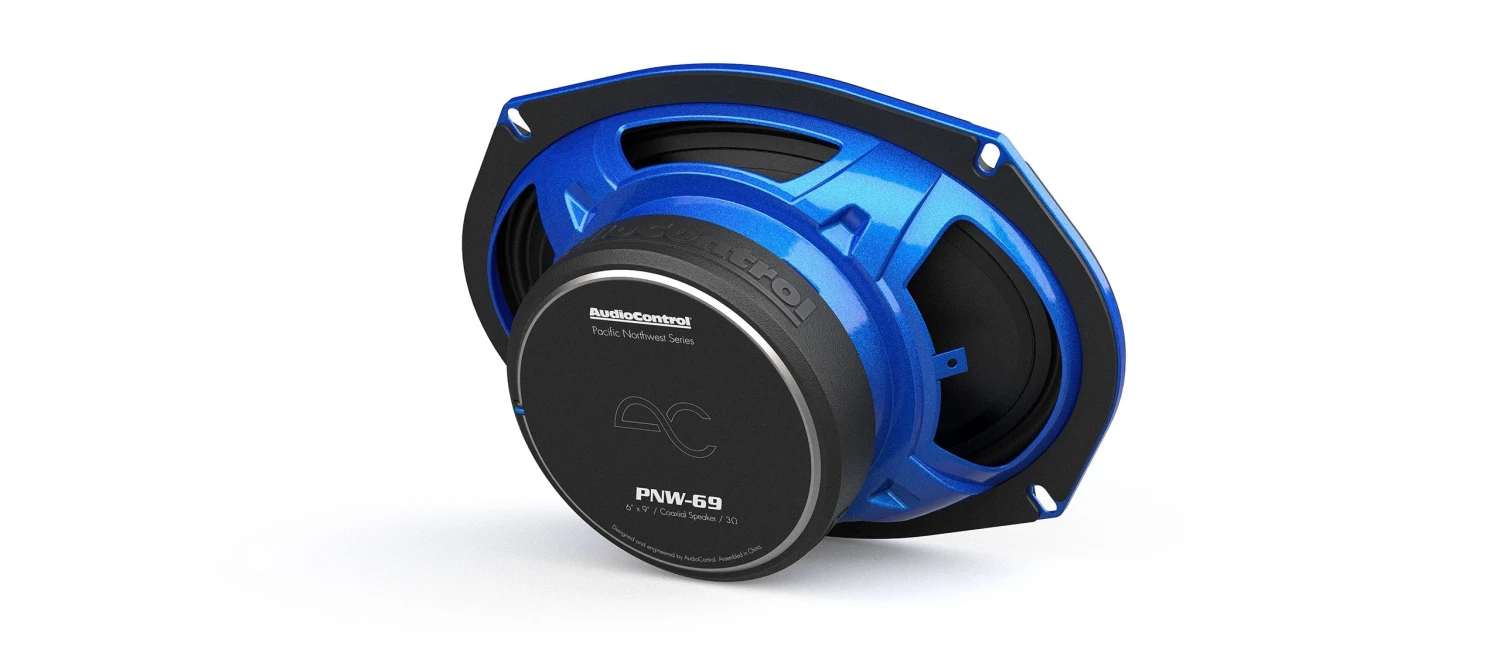

Audiocontrol PNW-65 PNW Series 6×9″ Coaxial Speakers

With over 45 years of expertise in engineering premium audio components, AudioControl is taking your in-vehicle sound to the next level with the all-new PNW speakers! Get ready to experience your music like never before—rich, powerful, and inspired by the breathtaking landscapes of the Pacific Northwest. When paired with AudioControl’s legendary amplifiers, the PNW series delivers an unparalleled auditory experience.

Built for performance, the PNW speakers feature an edge-enhanced steel frame for exceptional durability, a black anodized voice coil former for superior heat dissipation, and a linear double-roll surround for precise cone movement. The rigid poly mica-coated cone further enhances sound reproduction, ensuring crystal-clear audio at any volume.

Worried about installation? We’ve got you covered. Each speaker set includes high-quality mounting hardware for a hassle-free setup. Plus, the tweeter’s point source design perfectly aligns driver output, creating impeccable speaker balance for incredible sound quality. Want the ultimate listening experience? Pair the PNW series with our Spike or Space subwoofers for deep, resonant bass that brings your music to life.

More than just specs on paper, the PNW series is designed to impress—delivering outstanding detail, clarity, and power every time you drive.

Features
Edge-enhanced steel frame for added structural strength
Black anodized voice coil former for superior heat dissipation
Linear double-roll surround for precision cone movement
Complex FEA-designed high-efficiency motor
Rigid poly mica-coated cone for optimized sound reproduction
Rear dampened hybrid silk dome tweeter for extended frequency response
Concentric point source design for a seamless transition from midrange to tweeter
Sonic diffuser and radiant collar for better off-axis frequency response
High-quality mounting hardware included

Specifications
Crossover Type: Butterworth
DC Resistance (Re): 2.6 ohms
Filter Type: HP
System Frequency (Fs) Response: 50-20k Hz
XO Frequency: 5250 Hz
Slope (Octave): -6 dB
Tweeter Voice Coil Diameter: 20 mm
Midrange Voice Coil Diameter: 35 mm

Dimensions
Overall Dimensions: 6 x 9 in / 167 x 235 mm
Overall Diameter(w/o Metal bracket): 7.2 x 10.43 in / 183 x 265 mm
Cut Out Diameter: 5.74 x 8.34 in / 146 x 212 mm
Mounting Depth: 2.95 in / 75 mm
Mounting Height (w/o Grille): 0.24 in / 6.3 mm
Mounting Height (w/ Grille): 0.98 in / 25 mm
Motor Diameter (w/ Cover): 4.6 in / 117 mm
