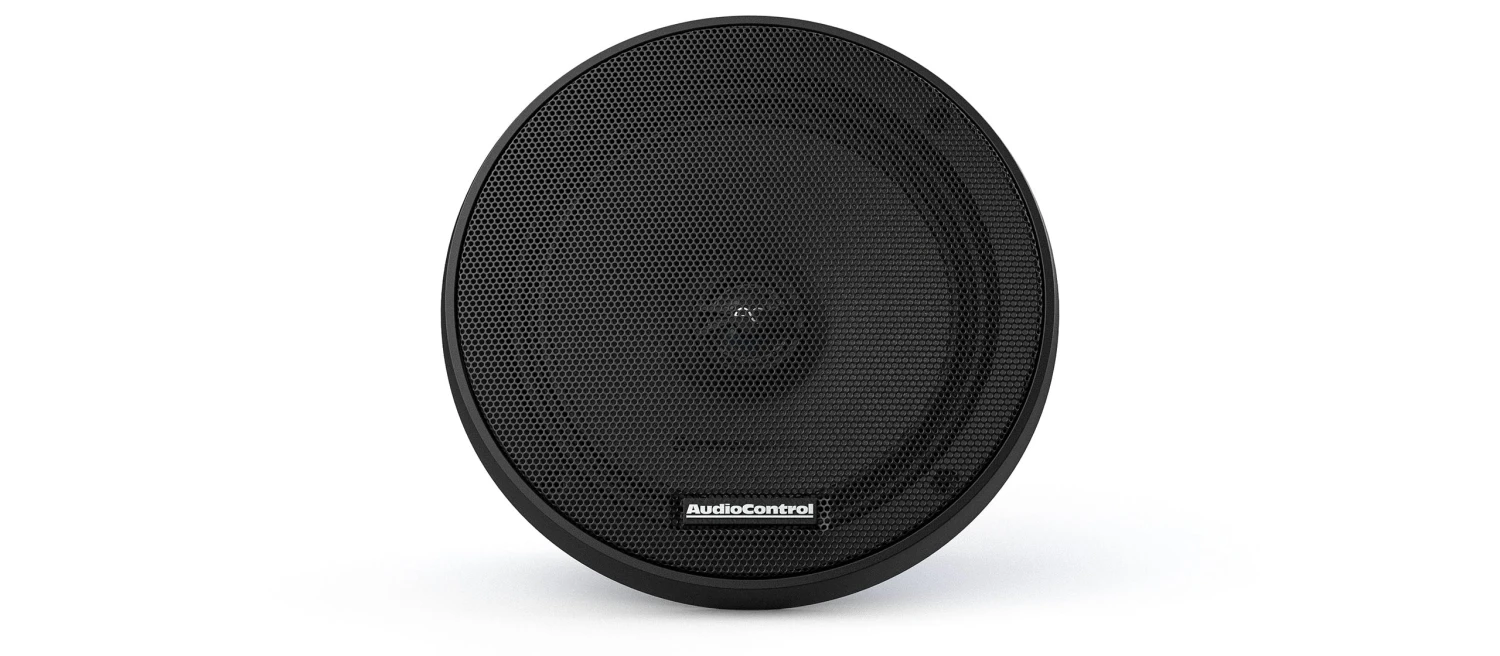

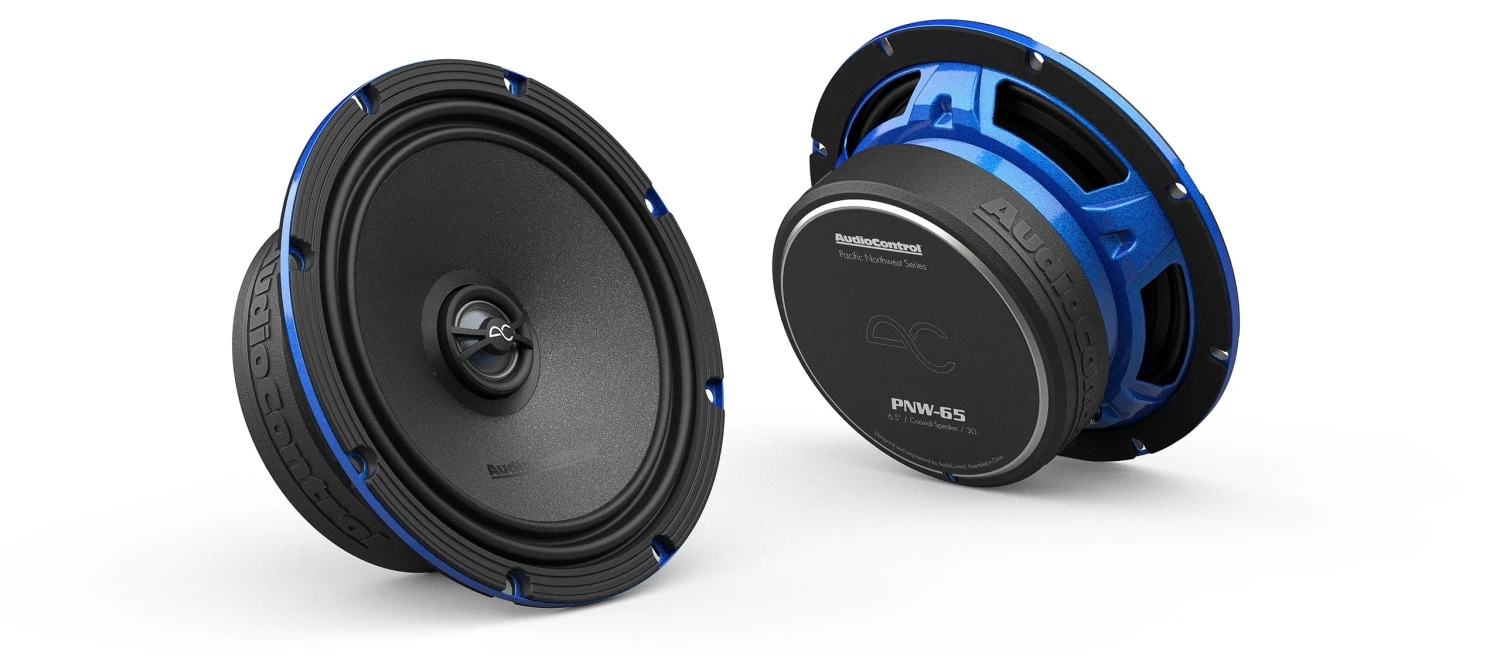

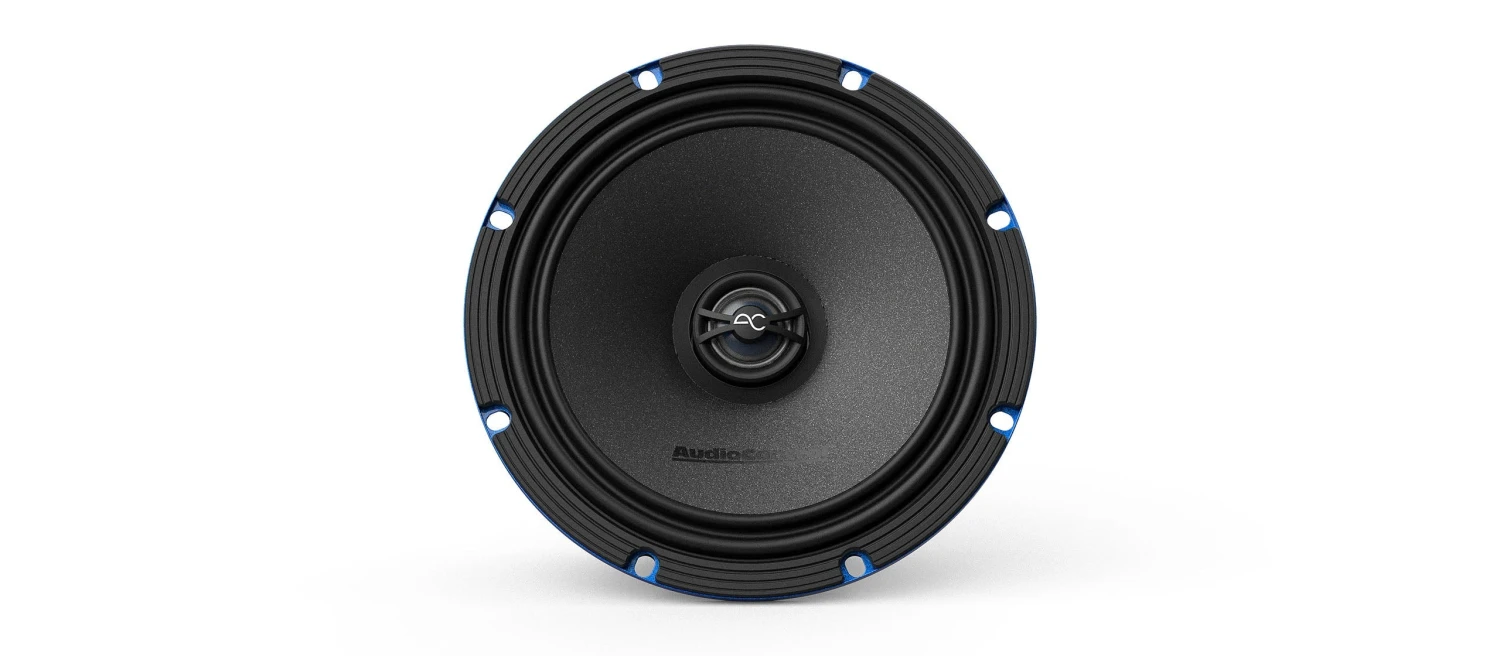

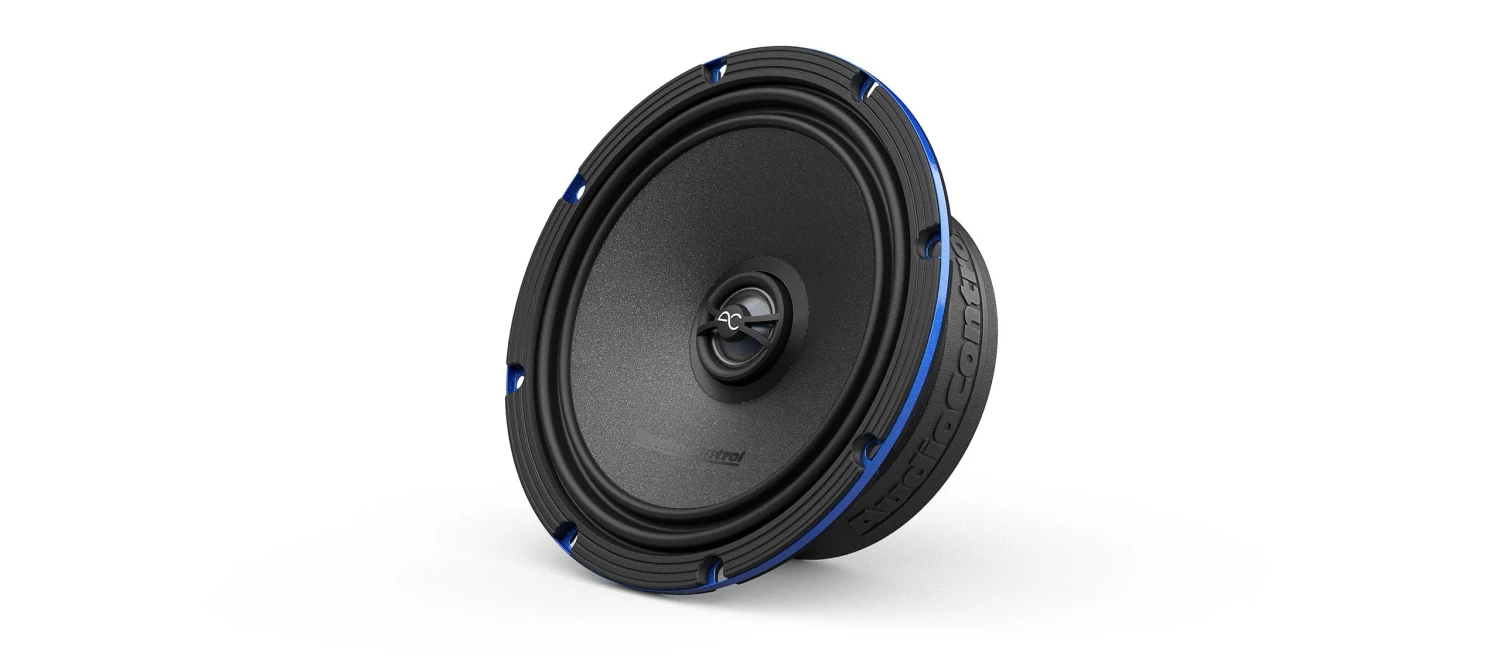

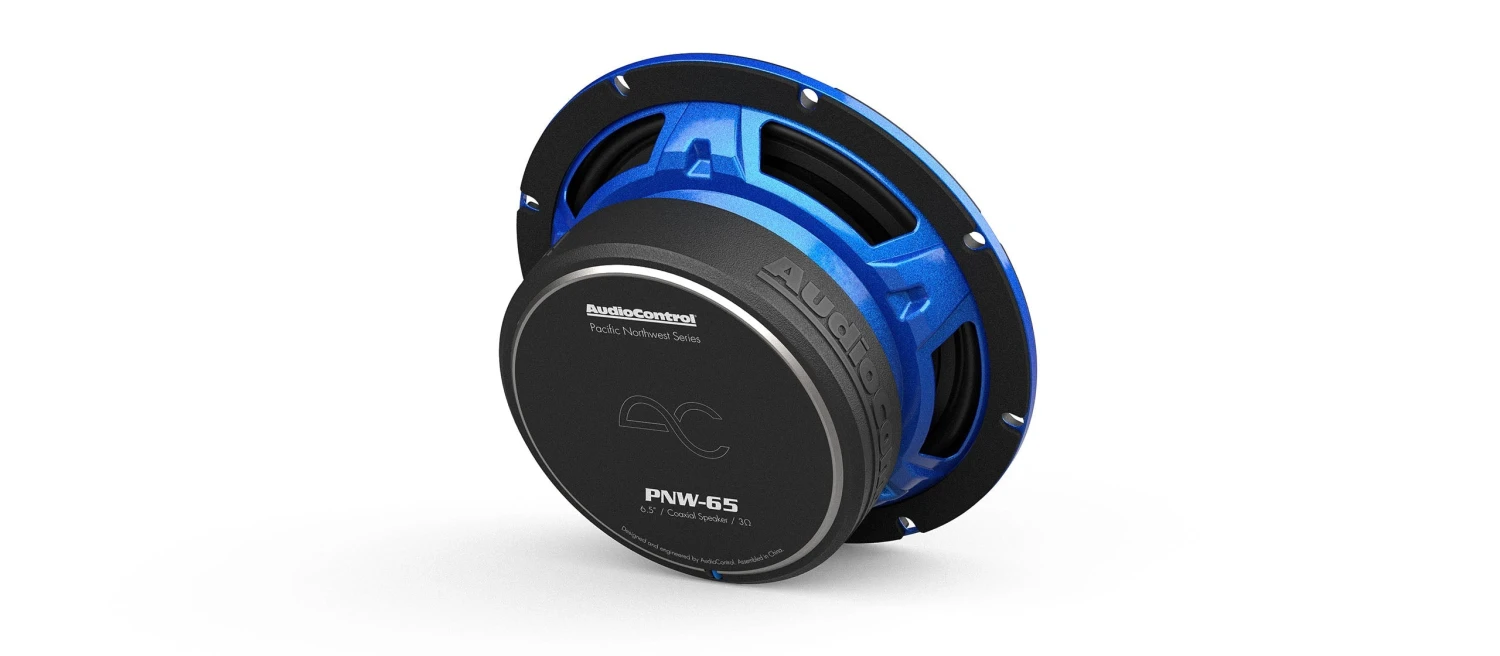

AudioControl PNW-65 6.5″ Coaxial Speakers

AudioControl has over 45 years of experience engineering top-quality audio components. Buckle up and get ready to embark on a wild new auditory adventure with AudioControl’s PNW speakers! Experience the vibrant landscapes of the Pacific Northwest through your music when you combine AudioControl’s legendary amplifiers with the new PNW series of speakers. Trust us, you’ve never heard sound quite like this before. The PNW line features an edge-enhanced steel frame for ultimate structural strength, a black anodized voice coil former for superior heat dissipation, and a linear double-roll surround for precise cone movement. Plus, the rigid poly mica-coated cone optimizes sound reproduction.

Worried about installation? Don’t be! Our speaker sets come with high-quality mounting hardware, so you can enjoy your new sound system hassle-free. The tweeter’s point source design even aligns the output of both drivers perfectly, resulting in better speaker alignment for amazing sound quality. Looking for the full package? Pair PNW with our Spike or Space series subwoofers for the ultimate in-vehicle listening experience. All of these features add up to a line of speakers that are not only impressive on paper but are sure to impress you with their detail, clarity, and volume every time you drive.

Features
Edge-enhanced steel frame for added structural strength
Black anodized voice coil former for superior heat dissipation
Linear double-roll surround for precision cone movement
Complex FEA-designed high-efficiency motor
Rigid poly mica-coated cone for optimized sound reproduction
Rear dampened hybrid silk dome tweeter for extended frequency response
Concentric point source design for a seamless transition from midrange to tweeter
Sonic diffuser and radiant collar for better off-axis frequency response
High-quality mounting hardware included

Specifications
Crossover Type: Butterworth
DC Resistance (Re): 2.3 ohms
Filter Type: HP
System Frequency (Fs) Response: 60-20k Hz
XO Frequency: 5250 Hz
Slope (Octave): -6 dB
Tweeter Voice Coil Diameter: 20 mm
Midrange Voice Coil Diameter: 35 mm

Dimensions
Overall Diameter (w/o Grille): 6.5 in / 166 mm
Cut Out Diameter: 5.59 in / 142 mm
Mounting Depth: 2.36 in / 60 mm
Height (w/o Grille): 0.20 in / 5.2 mm
Height (w/ Grille): 0.86 in / 22 mm
Motor Diameter (w/ Cover): 4.6 in / 117 mm
Grille Overall Diameter: 7.05 in / 179 mm
