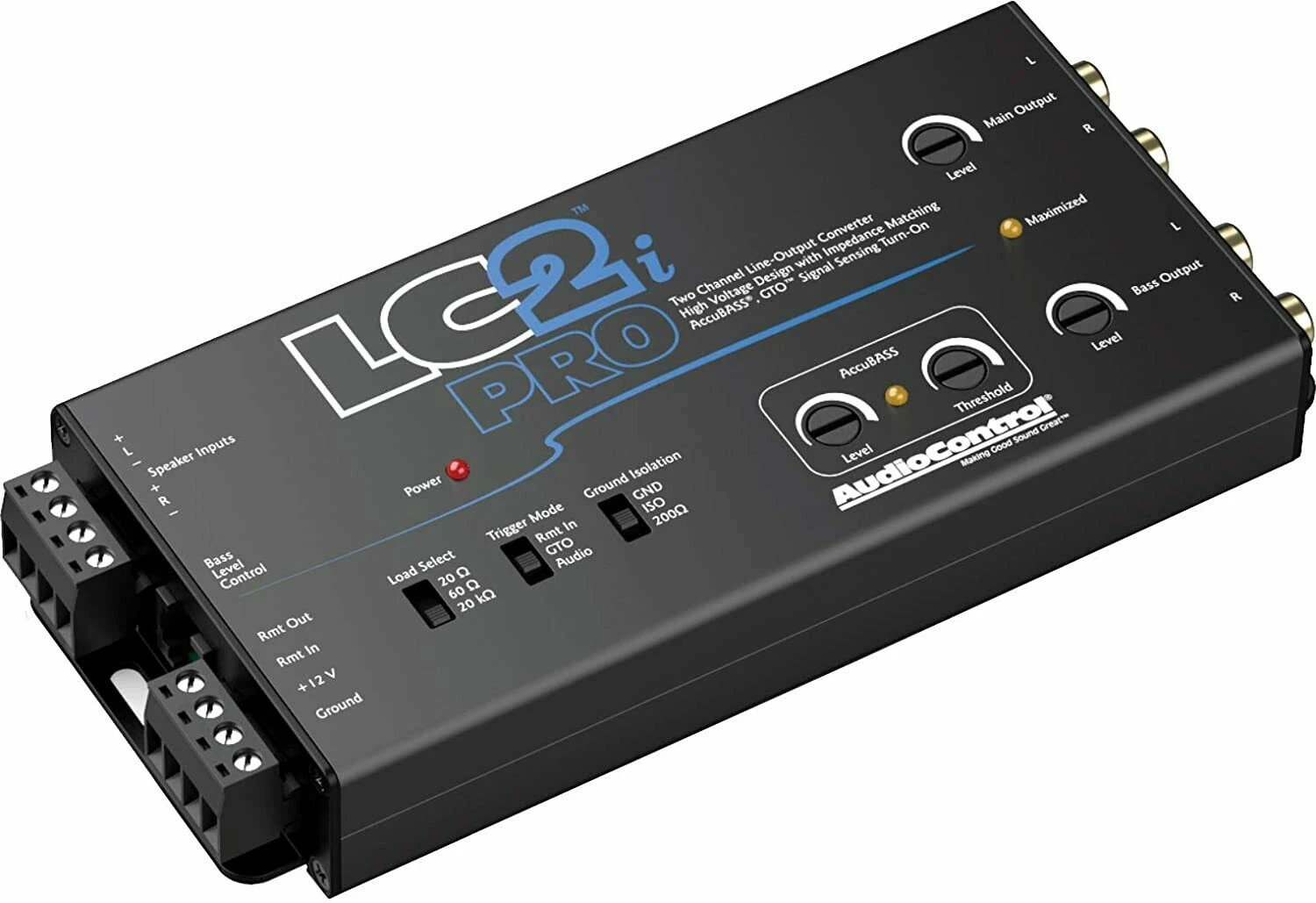

AudioControl LC2i PRO 2-Channel Line Output Converter with ACR-1 Bass Knob

The LC2i PRO builds on the legacy of AudioControl’s popular LC2i, offering the ultimate active line output converter for seamless factory system integration. Whether you’re adding a subwoofer or planning a full system upgrade, the LC2i PRO ensures the best possible signal transfer to your amplifiers.

Key Features
Effortless OEM Integration – Load selection switches make compatibility with factory systems easier than ever, even with the most complex setups.
Flexible Turn-On Triggers – Choose between GTO Signal Sense (DC offset), audio sense, or remote 12V input for a hassle-free installation.
AccuBASS® Technology – Compensates for factory bass roll-off, delivering deep, powerful low-end performance.

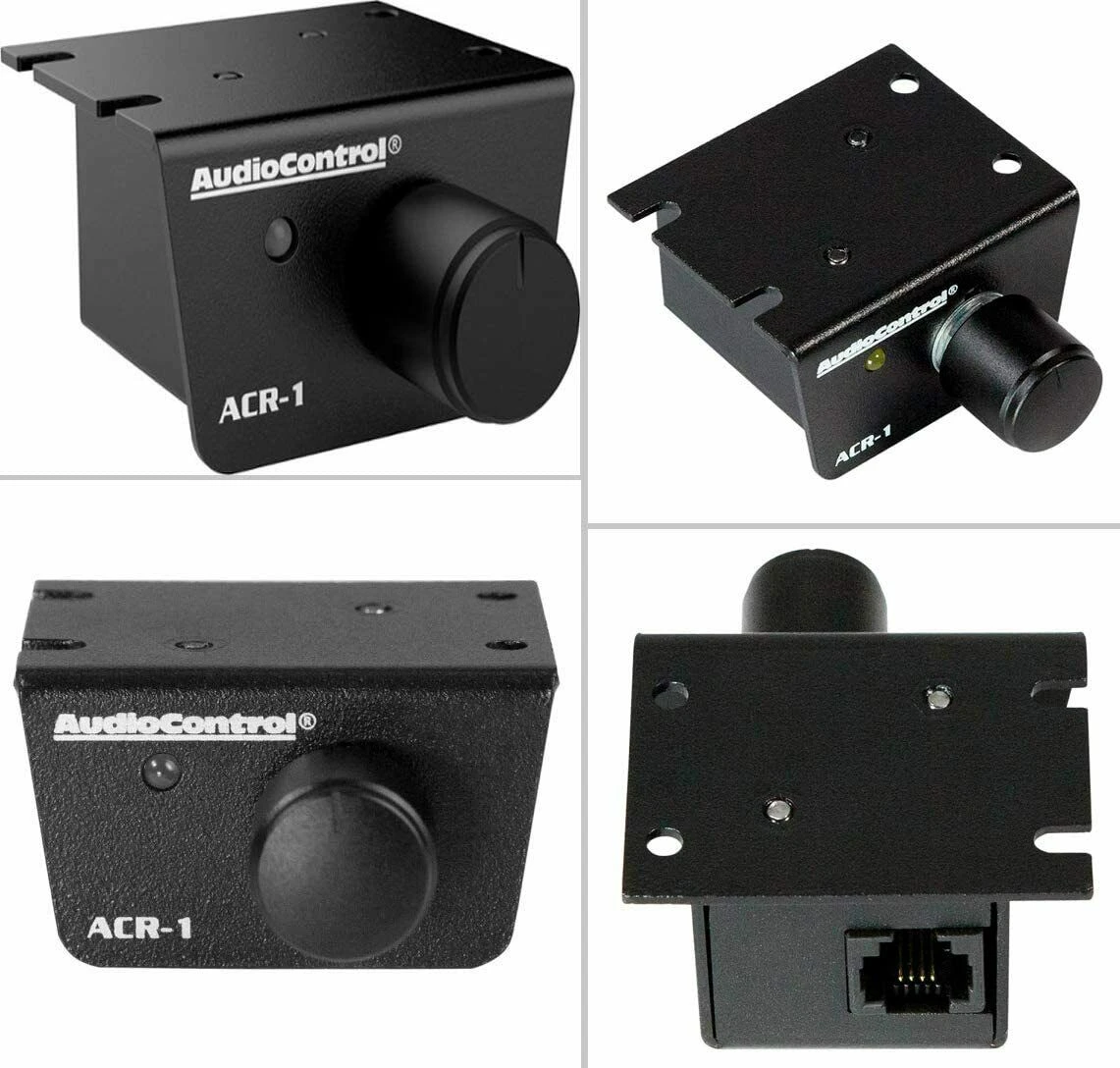

Subwoofer Level Control – The included ACR-1 remote lets you adjust bass output on the fly.

Specifications

Inputs
Speaker Level Input: 1 (2 channels)
Maximum Speaker Level Input: 40 Vrms / 400 W (20kΩ setting)
Input Impedance (selectable): 20Ω, 60Ω, 20kΩ

Outputs
Preamp Outputs: 2 (2 channels main, 2 channels bass)
Maximum Output Level: 9.5Vrms/13V peak
Output Gain: +/- 12 dB
Output Impedance: 150Ω

Performance
Total Harmonic Distortion: 0.01%
Signal to Noise: >110 dB
Frequency Response: 20 Hz – 50 kHz ±1 dB

Control
Remote In / GTO Signal Sense / Audio Sense
12VDC Remote Out (always active when unit is on)

General
Current Draw: 200 mA
Recommended Fuse Rating: 1 A

Weights & Dimensions
Dimensions: 6.9″L x 3″D x 1″H (including speaker connectors)
Weight: 0.75 lbs. (0.34 kg)

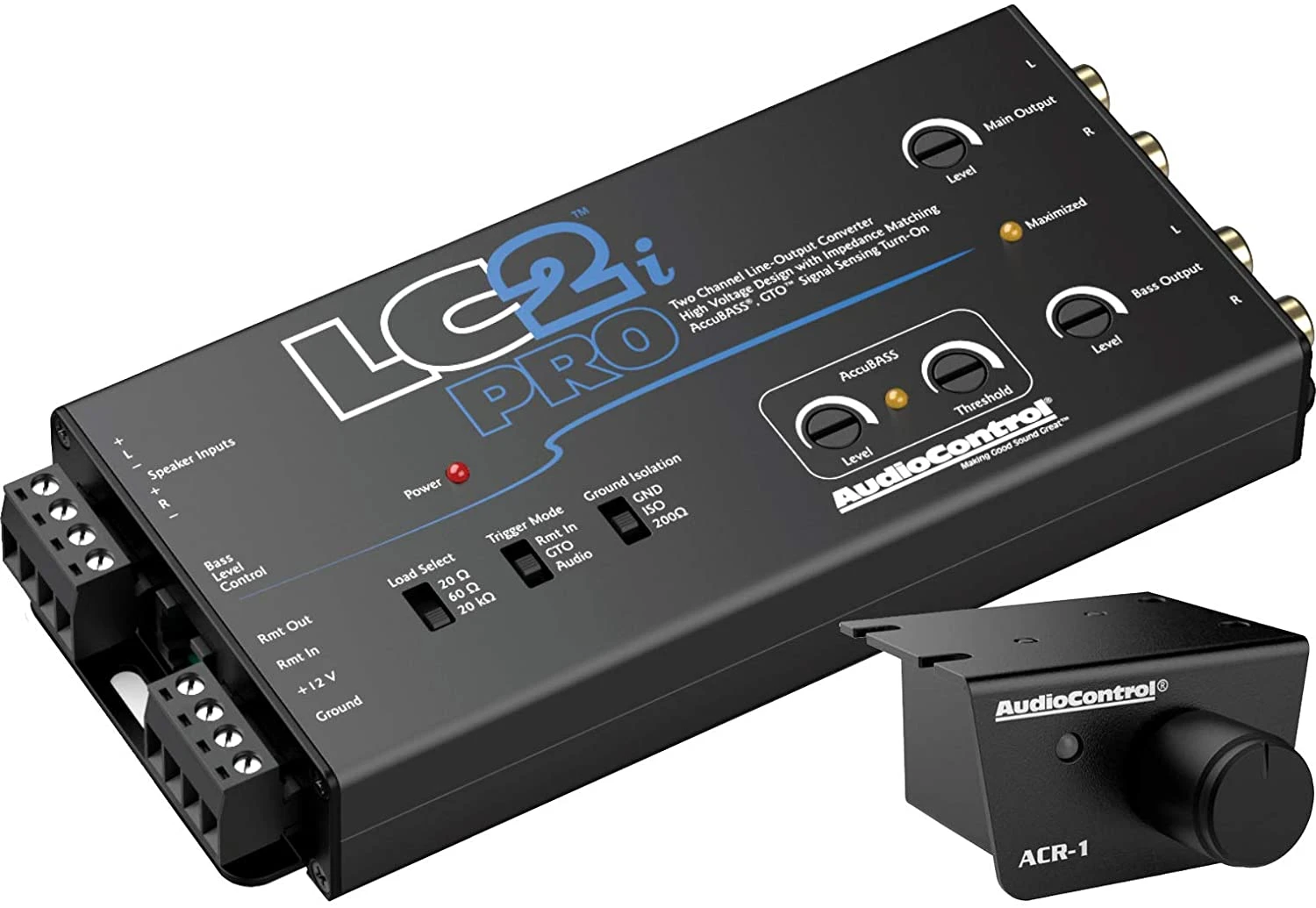

Includes: LC2i PRO, ACR-1, 20′ Phone Cable, Speaker and Power connectors, Manual, Warranty
