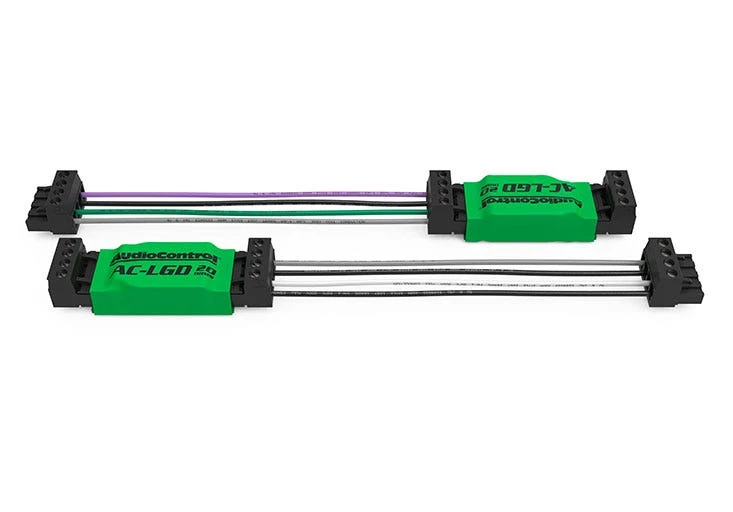

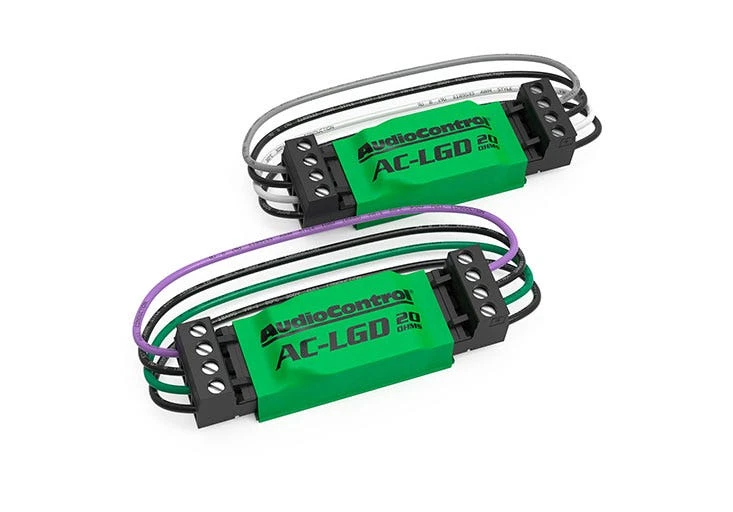

AudioControl AC-LGD 20 Load Generating Device & Signal Stabilizer

Ideal for OEM non-amplified (no external amplifier) Dodge®, Chrysler®, Jeep®, Maserati® sound systems.

Today’s factory amplifiers feature built in protection circuits which can mute some or all audio outputs when the factory speakers are removed. The AC-LGD 20 has been designed to generate load and stabilize signal from amplified factory system to ensure the best possible audio.

The AC-LGD 20s come in pairs and can be easily connected to your AudioControl Factory System Upgrade product with the pre-wired connectors. The AC-LGD 20 is installed between the factory speaker outputs and your line output converter or speaker level inputs on your amp or processor. Each AC-LGD 20 pair comes pre-wired with EIA standard wire colors for front and rear connections.

Specifications

General
Maximum Input Voltage: 15 Vrms (50 watts)
Input Impedance: 20 Ohms

Weights & Dimensions
Dimensions (without wires/connectors): 2.3″L x 1.0″W x .06″H
Dimensions (with wires/connectors): 9.75″L x 1.0″D x .06″H
Weight (single LGD): 1.4oz (39g)

In the Box
One pair of prewired AC-LGD 20s
