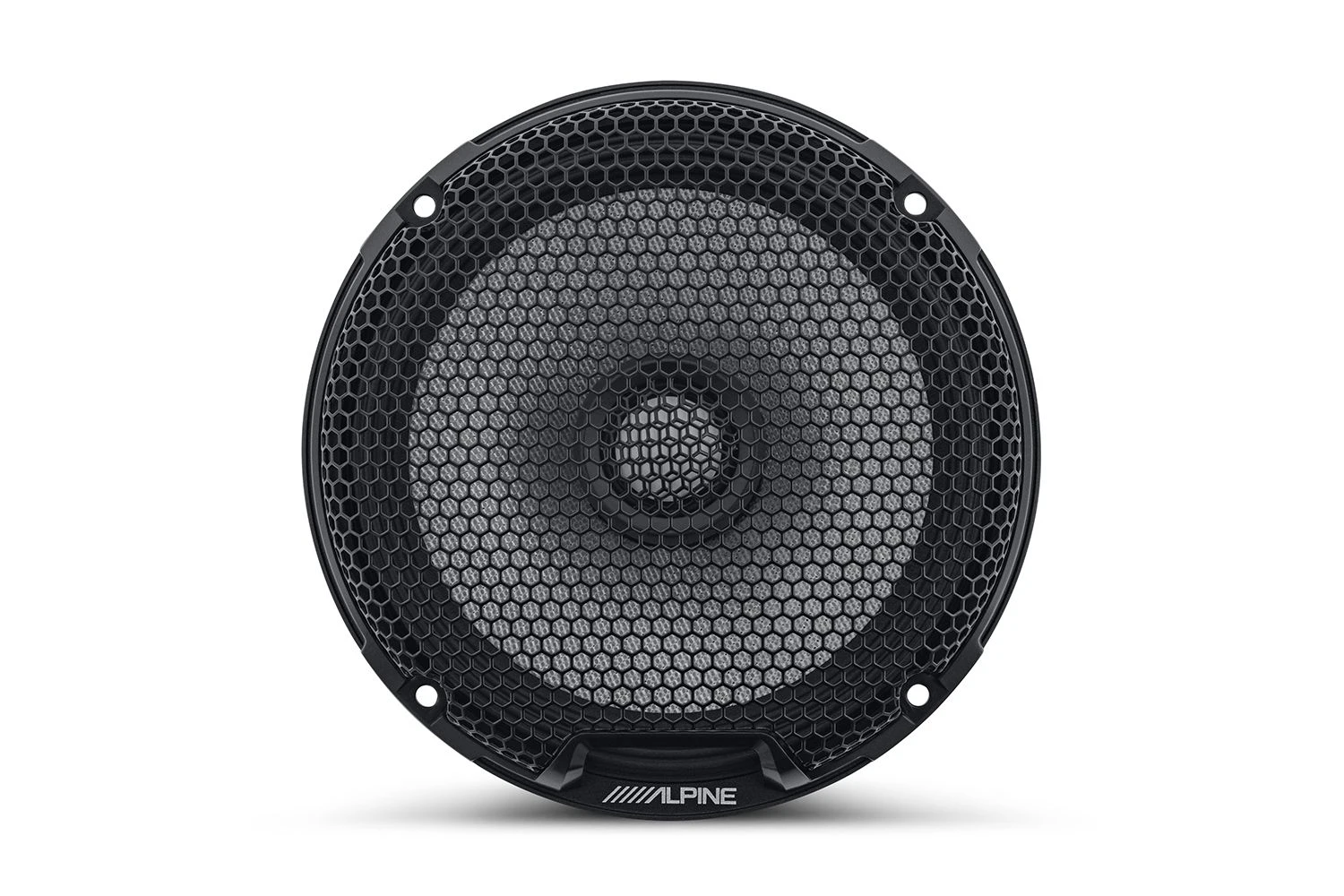

Alpine R2-S65 R-Series 6.5″ Next Gen Speakers

The Next-Generation R-Series sound system line features the same “Loud and Fun” experience now certified for High-Resolution Playback.

Hi-Res Certified
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.

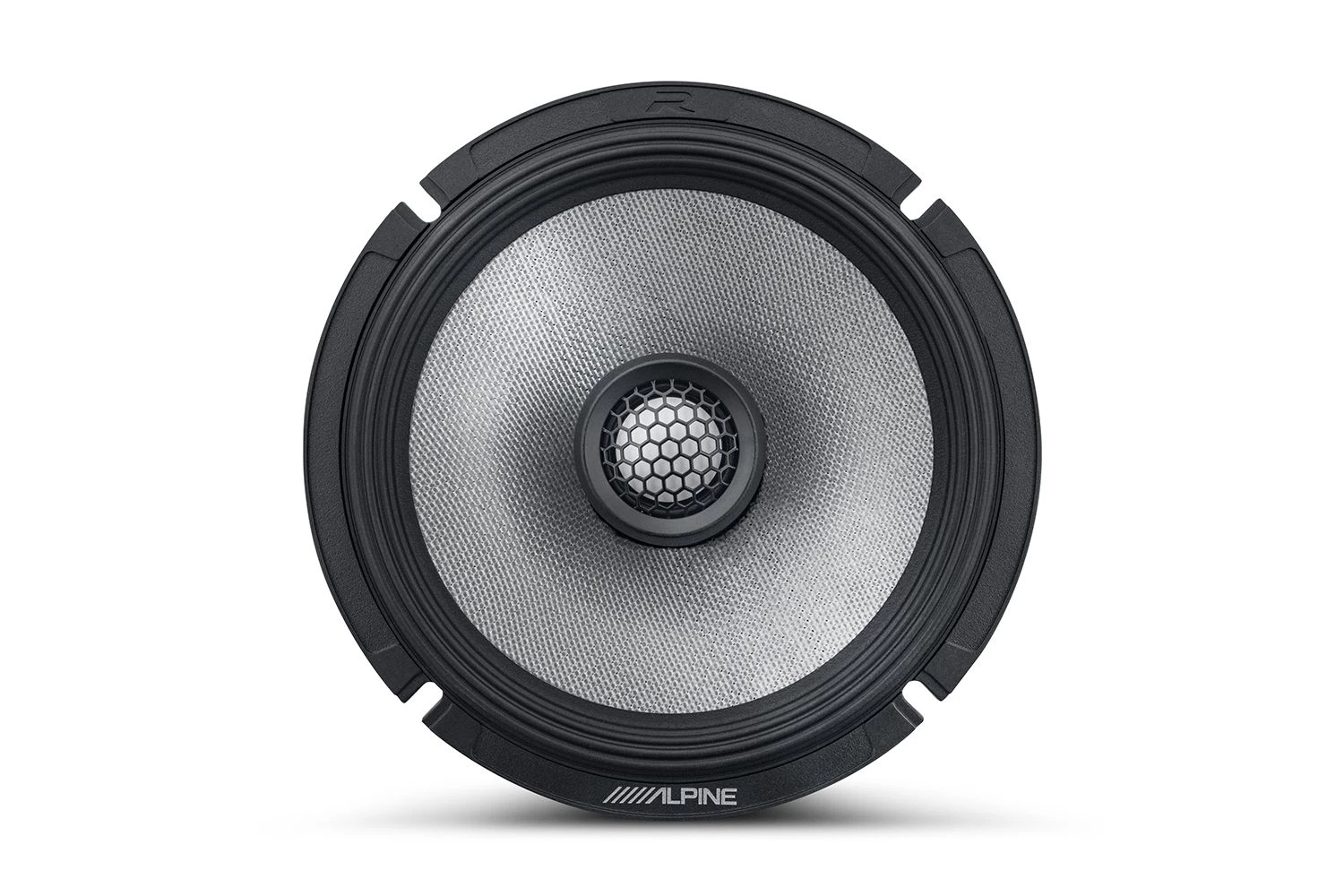

Glass-Fiber Reinforced Cone
The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback.

Upgraded Mid-Bass

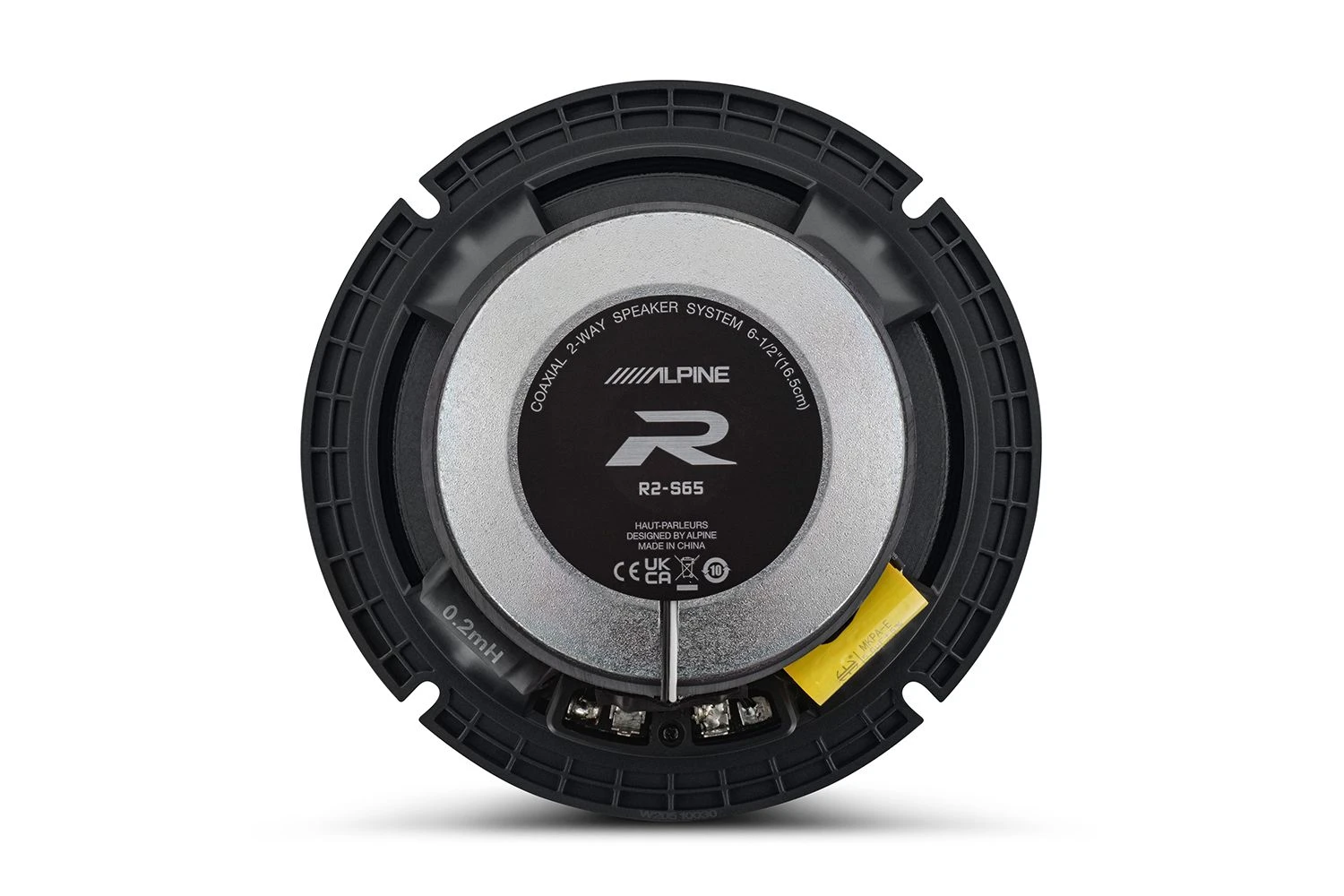

The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.

HAMR Surround
Alpine’s HAMR Surround (High-Amplitude Multi-Roll) allows for a maximum cone excursion, while maintaining excellent control. This results in strong bass at high volumes without distortion.

Pro vs Standard

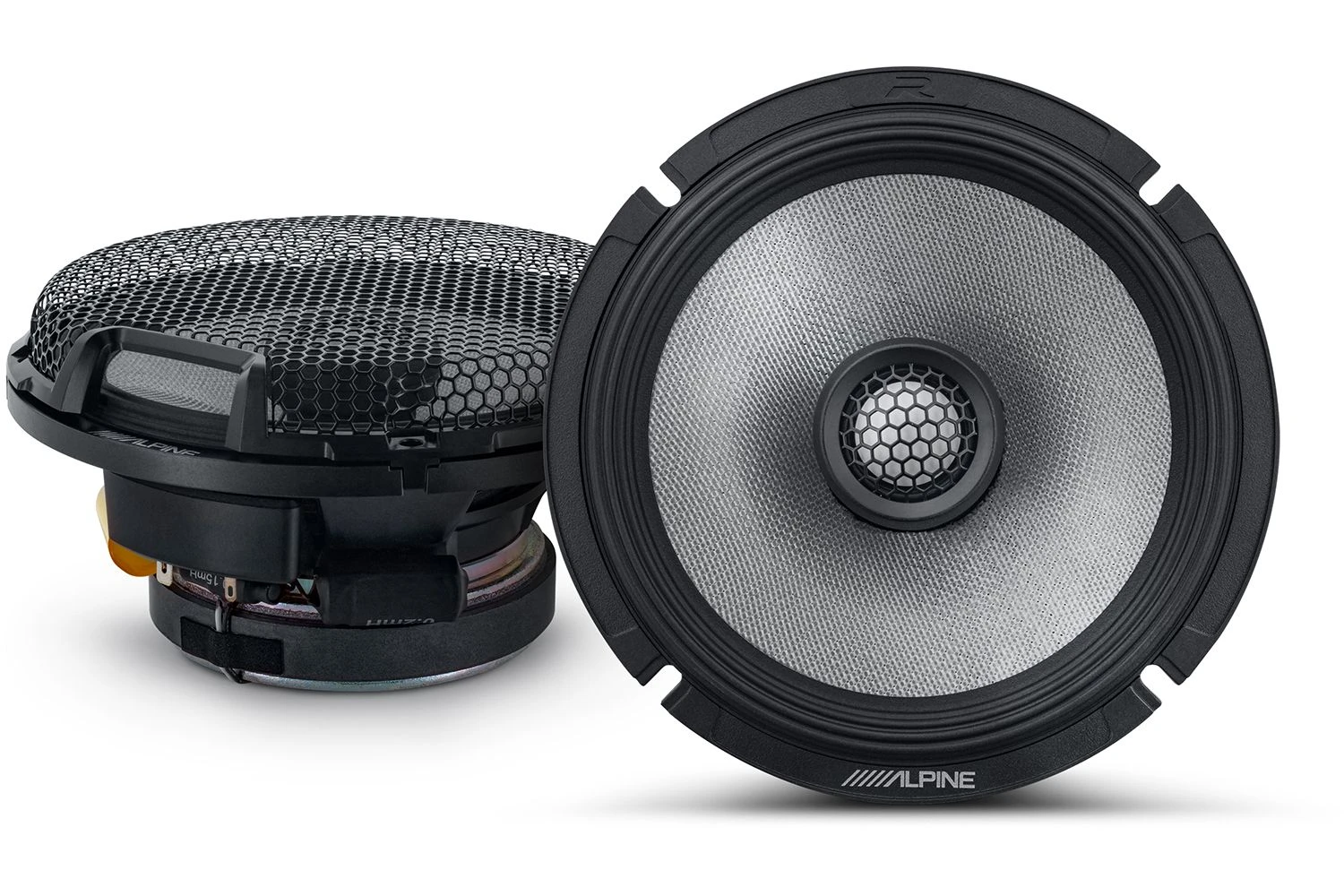

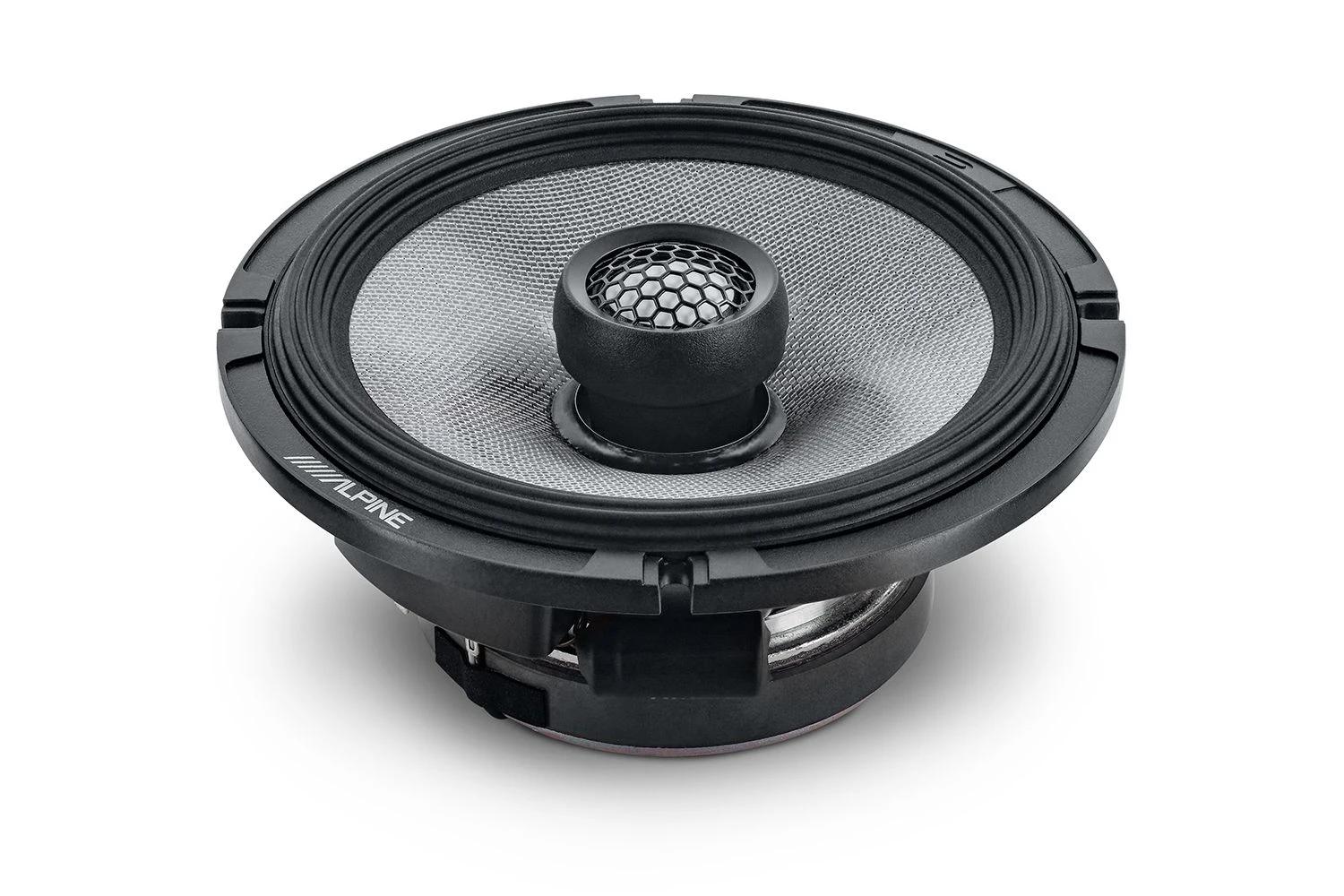

The Next-Generation R-Series speaker line offers two pathways for performance: the “Pro” and “Standard” models. The R2-S65 is a standard coaxial speaker set that includes a 6.5” Mid-Range and 1” Coaxial Tweeter with a flexible in-line crossover network that simplifies installation.

Specifications
Maximum Peak Power: 300 Watts
Maximum RMS Power: 100 Watts
Nominal Impedance: 4 Ohm
Frequency Response: 65Hz-40kHz
Sensitivity: 88dB SPL (1W @ 1m)
Woofer Mounting Depth: 6,3cm
Woofer Cutout Diameter: 13,5cm

What’s in the Box

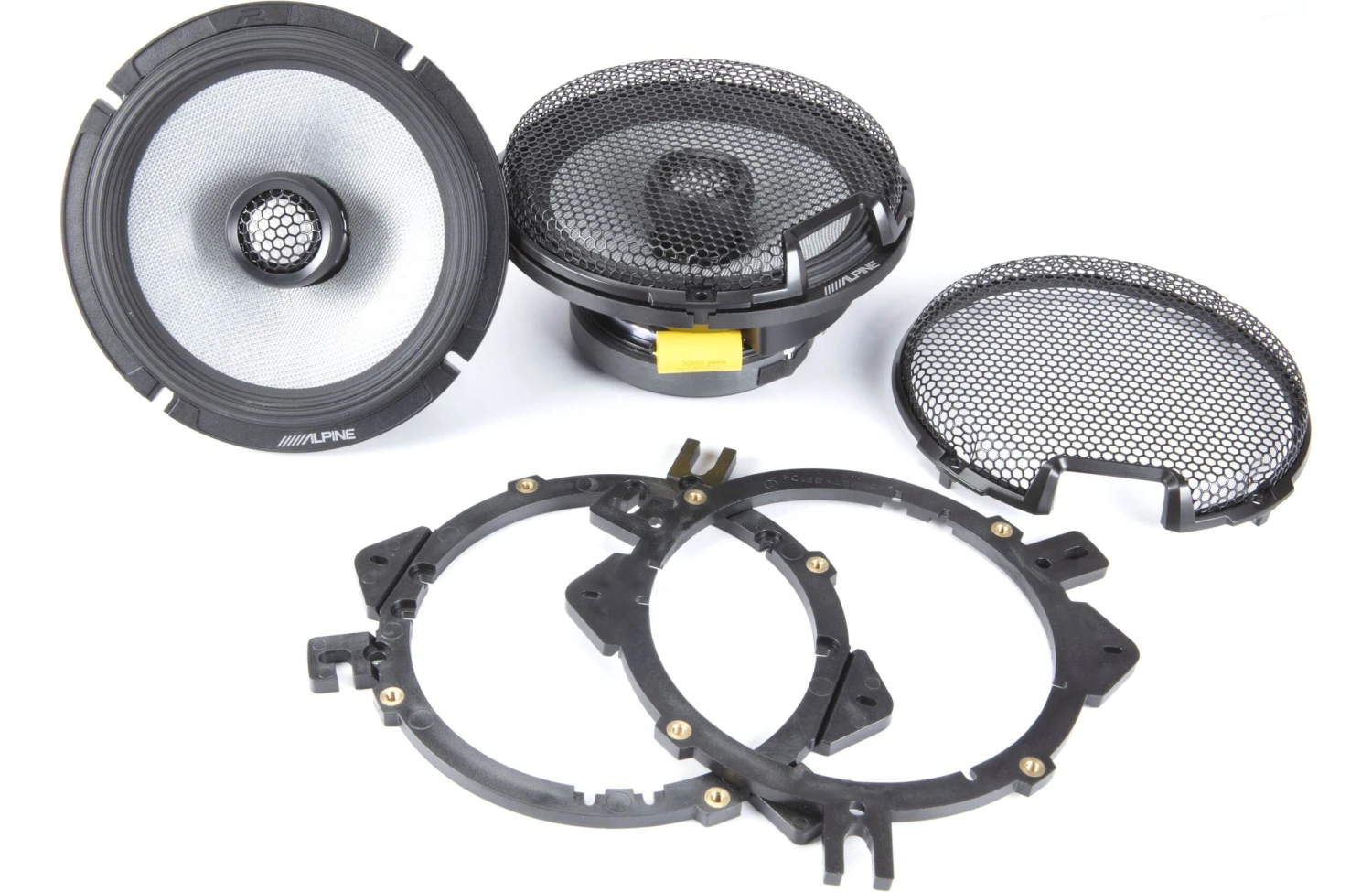

(x2) 6.5” Mid-Bass Speakers w/1″ Coaxial Tweeters

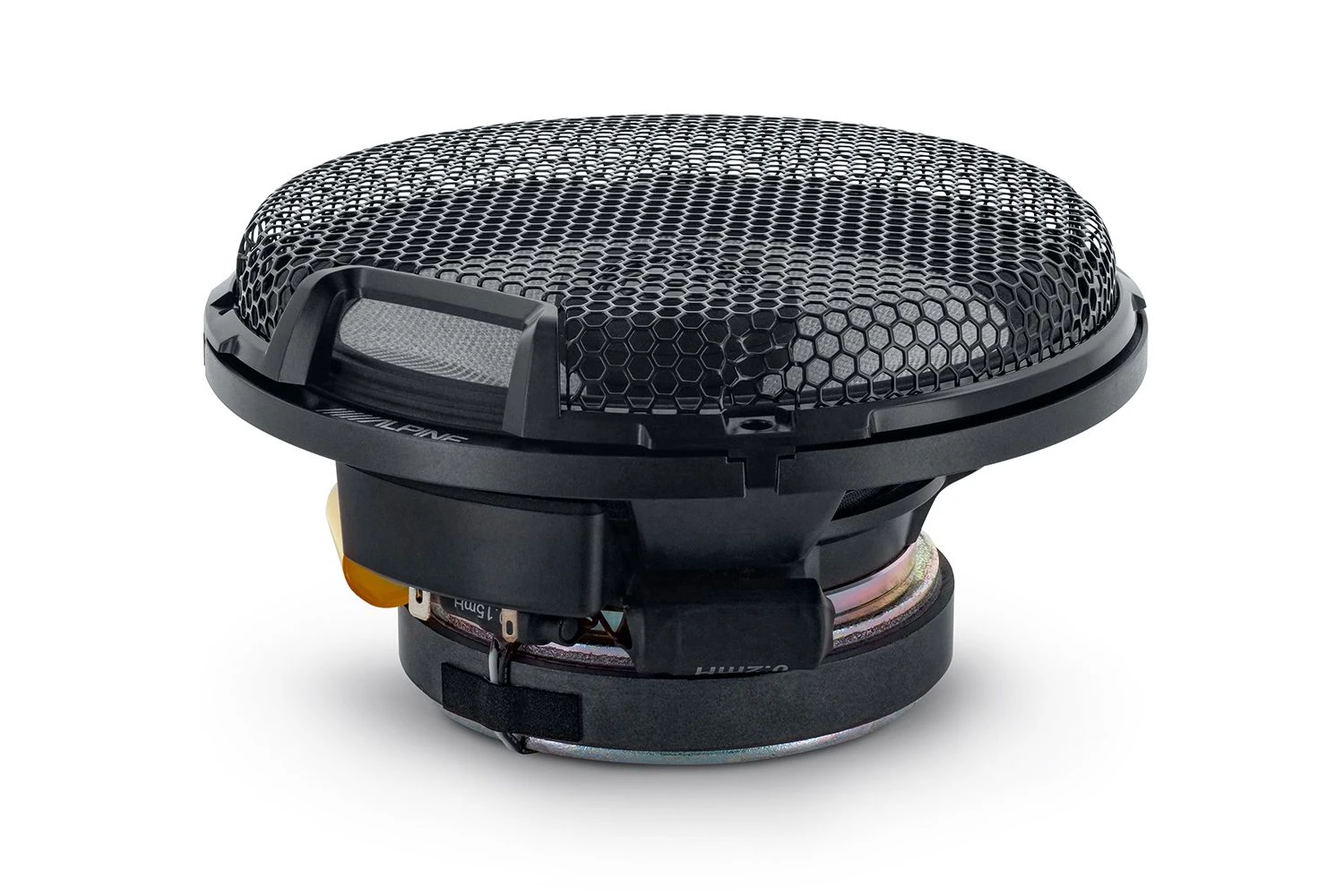

(x2) Grilles
Mounting Hardware (x8 Screws, x8 Speed Clips)
Alpine Registration Card
Alpine Limited Warranty Sheet

Owner’s Manual
Installation Guide
