Alpine R2-A75M R-Series Subwoofer Amplifier

Alpine R2-A75M R-Series Subwoofer Amplifier

Experience the impressive power and exceptional performance of the Next-Gen R-Series R2-A75M Mono Amplifier, now featuring a more compact design. The R2-A75M features a reduced footprint that’s 15% smaller than the previous model (R-A75M), making it easier than ever to install in most vehicle applications while still getting the same powerhouse performance.

Features
750W Mono Amplifier
Alpine’s Class D Amplifier Circuit
Reduced Footprint (15% smaller compared to the previous R-A75M model)
One-Sided Terminal Layout
Top Panel Sound Controls
Integrated Mounting Feet for Simple Installation
Optional Remote Bass Knob Compatible (required RUX-KNOB.2 or RUX-H01, sold separately)

Elevate your Audio
Elevate your audio with the Alpine R2-A75M Mono Amplifier – delivering powerful 750W performance in a sleek, compact design. Built with Alpine’s cutting-edge Class D Amplifier Circuit, this next-generation R-Series amp offers exceptional sound quality and efficiency, making it the perfect addition to any car audio system.

Reduced Footprint
The R2-A75M features a reduced footprint that’s 15% smaller than the previous model (R-A75M), making it easier than ever to install in most vehicle applications while still getting the same powerhouse performance.

Convenience & Simplicity

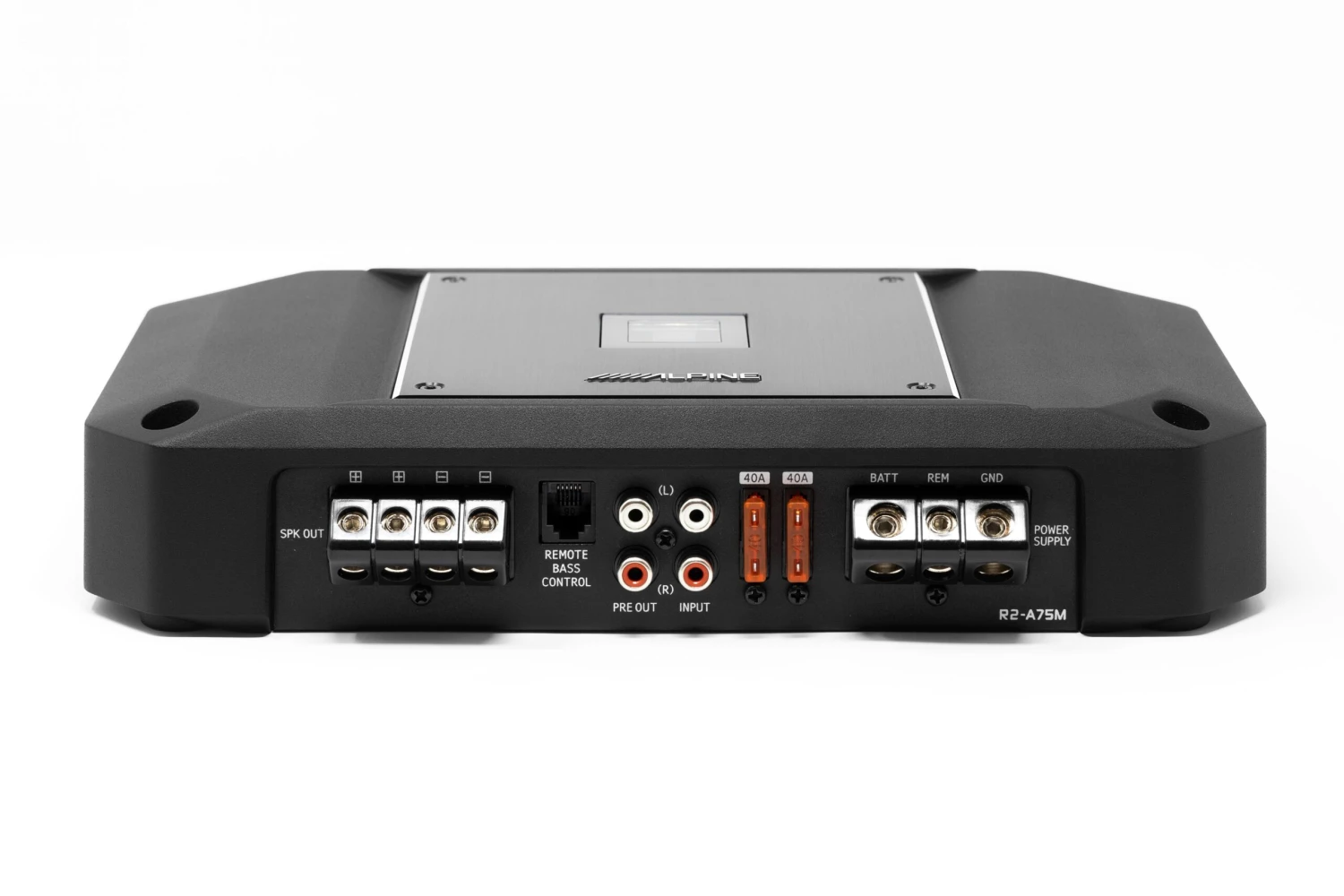

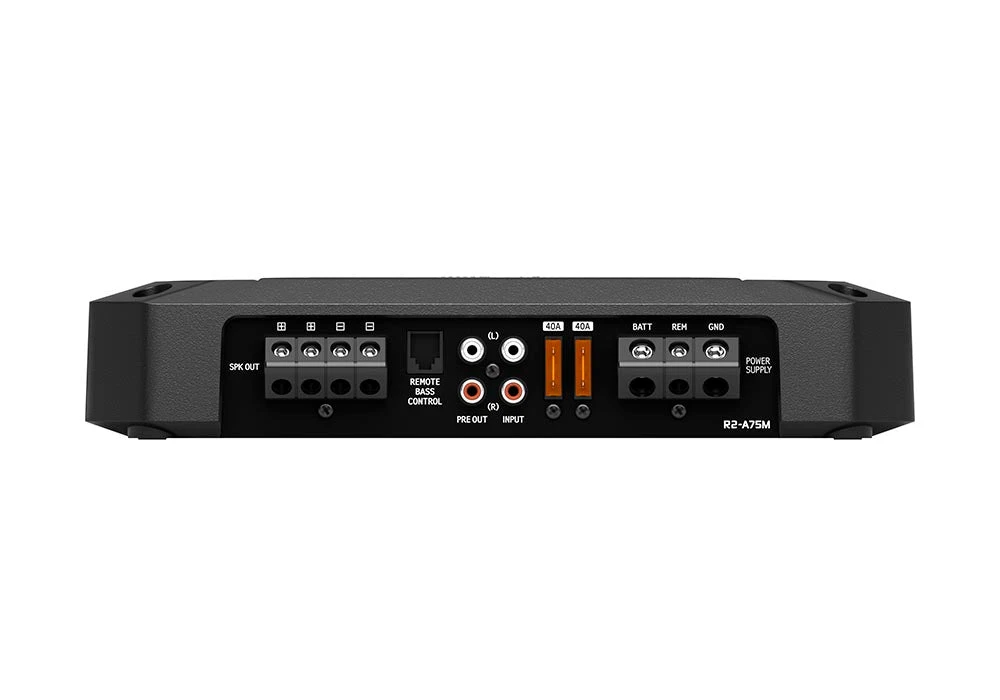

The R2-A75M features intentional design choices that prioritize convenience and simplicity. All speaker connections are consolidated on one side of the device for easy access, while the amplifier controls have been relocated to the top under a removable plate, allowing for quick adjustments to gain and crossover controls. The amplifier’s chassis also includes integrated mounting “feet” to streamline the installation process.

Specifications
Dimensions: 11.1” W x 2.17” H x 6.5” D
Weight: 7 lbs, 10 oz
Power Rating: 14.4V, ≤ 1% THD +N
Power Output: 500W RMS x 1 @ 4Ω, 750W RMS x 1 @ 2Ω
S/N Ratio: >75dB
Frequency Response: 10Hz – 400Hz
Damping Factor: >250
CTA-2006-D Certification

What’s in the Box
(x1) R2-A75M Mono Amplifier
Owner’s Manual
“Birth Sheet” that certifies by measurement the actual power of the amplifier in the box
(x4) Screws for amplifier mounting to the vehicle
(x3) Allen wrench for amplifier connection and installation (2mm, 2.5mm, 3mm)
Alpine Registration Card
Alpine Limited Warranty Sheet
Installation Guide
